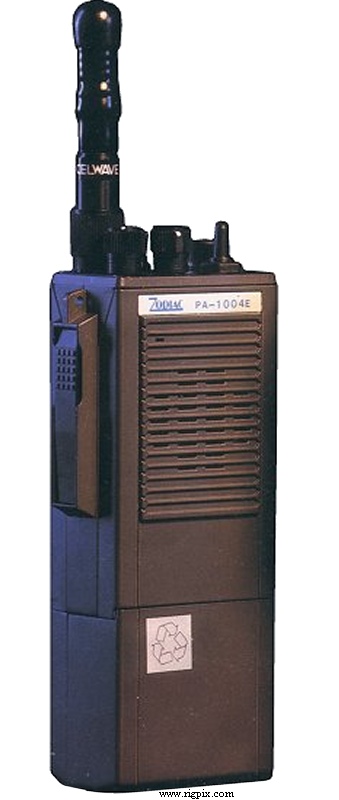

Zodiac PA-1004E

Type:Professional land mobile transceiver
Frequency range:400-480 MHz
Mode:FM
RF Power output:1 W
Receiver system:N/A
Sensitivity:0.3 uV (12 dB SINAD)
Selectivity:N/A
Image rejection:66 dB
Voltage:7.2 VDC
Current drain:RX: ? mA
TX: Max ? A
Impedance:50 ohms
Dimensions (W*H*D):58*150*35 mm
Weight:450 gr
Manufactured:19xx-19xx (Discontinued)
Other:16 channels, programmable
Related documents:
Modifications:
