| GENERAL |

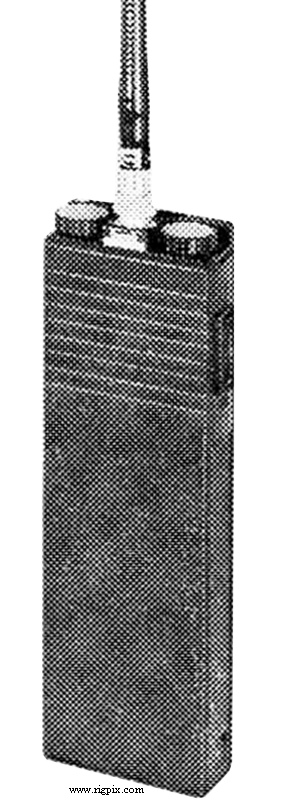

| Type: | Professional land mobile transceiver |
| Frequency range: |
146-174 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
6 regular
XTAL controlled
|
| Repeater shift / offset: | According to XTALs |
| Power supply: | 12 VDC (NiCd battery pack) |
| Current drain / power consumption: | RX: ? mA
TX: ? mA |
| Antenna impedance / connector: | 50 ohm / TNC |
| Dimensions (W*H*D): | 65*207*32 mm (2.56*8.15*1.26") |
| Weight: | 800 g (1.76 lb) |
| Other features: | Selcall option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.3 uV (No reference) |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 10% distortion / 20 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1.5 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Finland, 1970-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
