| GENERAL |

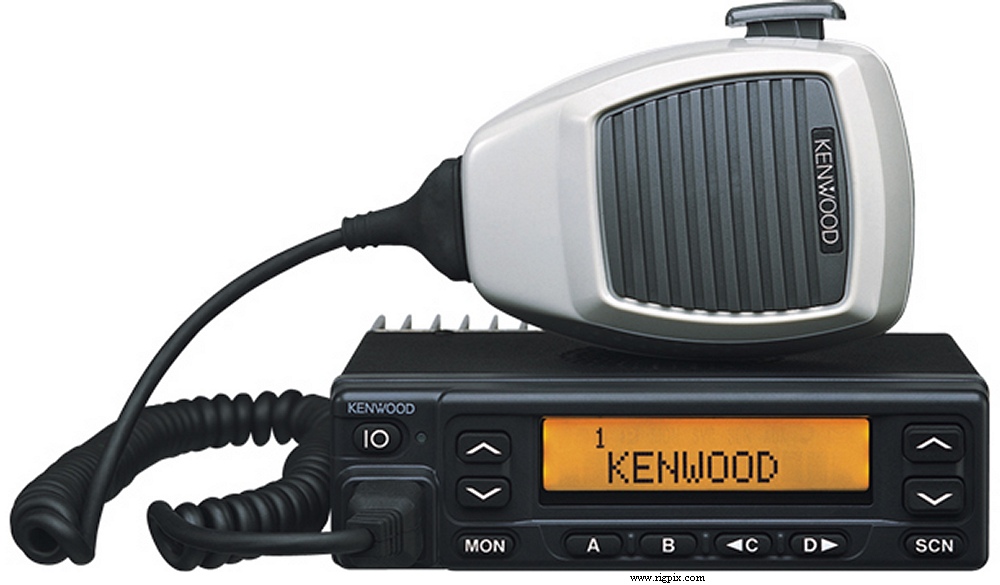

| Type: | Professional land mobile transceiver |
| Frequency range: |
TX: 806-825 / 851-870 MHz
RX: 851-870 MHz
|
| Tuning steps: | Channelized (Programmable in 12.5 KHz increments) |
| Frequency stability: | ±1.5 ppm @ -30 to +60°C (-22 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
600 LTR
250 conventional
32 systems
250 groups per system
Alpha tags (10 characters)
|
| Repeater shift / offset: | |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: 0.4-1 A
TX: Less than 7 A |
| Antenna impedance / connector: | 50 ohm / N-jack (On pigtail) |
| Dimensions (W*H*D): | 140*40*145 mm (5.5*1.5*5.75") |
| Weight: | 940 g (2.07 lb) |
| Other features: |
LTR trunking or conventional. FleetSync. DTMF. Scanning.
Caller ID. Encryption. Cloning. PC programmable.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 44.85 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 75 dB (Adjacent channel) |
| Image rejection: | 80 dB |
| AF output power / speaker: | 4 W at 5% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
15 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Modular) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 2000-20xx (Discontinued) |
| Additional info: |
FCC ID: ALH24563110
|
| Related documents: |
User manual (1.1 MB)
Service manual supplement (4 MB)
Service manual supplement II (3.5 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
KAP-1
KCT-18
KCT-19
KCT-31
KDS-100
KES-3
KES-5
KGP-2A
KGP-2B
KLF-2
KMB-2B
KMB-10
KMB-20
KMC-9C
KMC-27A
KMC-27B
KMC-28A
KPS-15
|
PA/HA unit
Ignition sense cable
Accessories connector cable
PC serial interface cable
Mobile data terminal
External speaker
External speaker
GPS receiver/modem unit
GPS receiver/modem unit
Line noise filter
Mounting case
Key lock adapter
Mounting case
Control station desk microphone
Noise cancelling hand microphone (Mil-Spec)
Hand microphone
Noise cancelling hand microphone with DTMF pad (Mil-Spec)
DC power supply
|
|
