| GENERAL |
| Type: | Professional land mobile UHF transceiver |
| Frequency range: |
450-470 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
5 regular
Two XTALs per channel
|
| Duplex shift / offset: | |
| Power supply: | 13.8 VDC ±10% |
| Current drain / power consumption: | RX: 300 mA (Standby)
TX: Max 3.2 A |

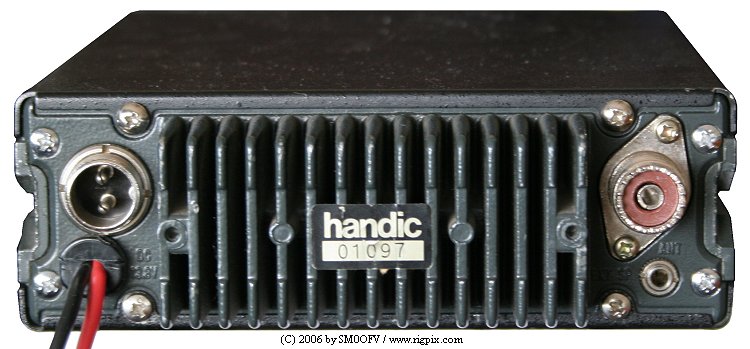

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 160*50*215 mm (?") |
| Weight: | 2 Kg (? lb) |
| Other features: | 5-tone CCIR option. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.695 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.3 uV (12 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | 70 dB |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
15 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 7-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: |
RF power module: M57704H
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
