| GENERAL |

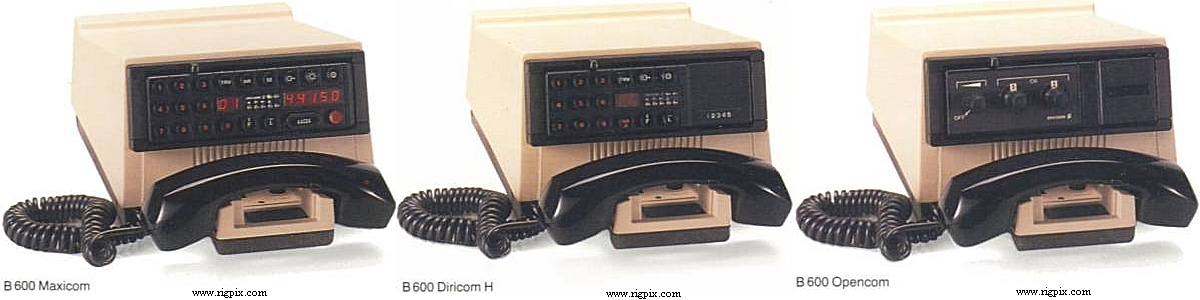

| Type: | Professional land mobile VHF transceiver |
| Frequency range: |
68-88 MHz
|
| Tuning steps: | Channelized (Programmable in ? KHz increments) |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: | |
| Duplex shift / offset: | Programmable |
| Power supply: | Mains or 13.8 VDC |
| Current drain / power consumption: | RX: 500 mA @ 13.8 VDC
TX: Max 4.5 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 365*160*225 mm (14.37*6.3*8.86") |
| Weight: | 4.3 Kg (9.48 lb) |
| Other features: | Features according to version. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
10 or 20 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Sweden, 19xx-19xx (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
