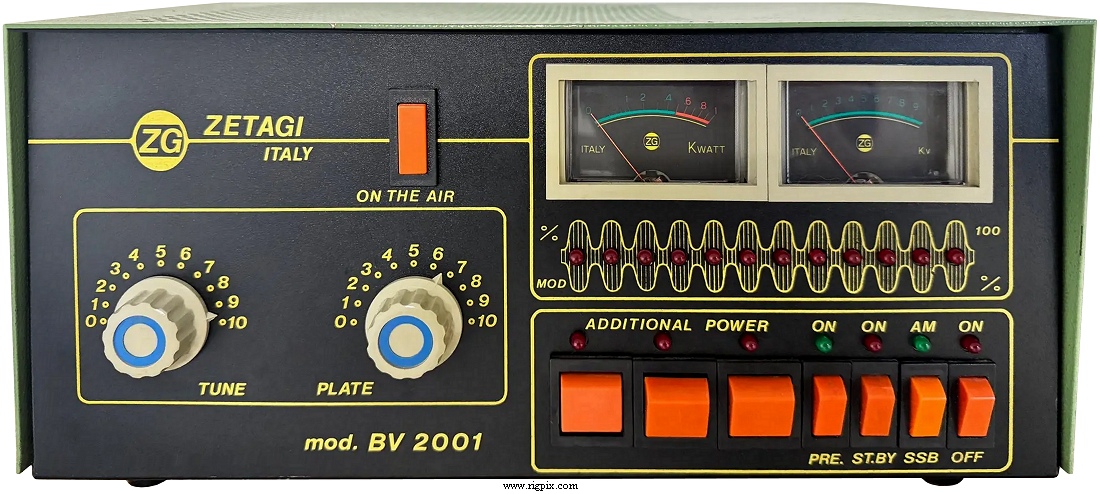

| Type: | HF linear amplifier |
| Frequency range / band(s): | 26-30 MHz (10 / 11 m) |
| Output power: |
AM/FM/CW:Max 600 W
SSB: Max 1.2 KW (PEP)
|
| Drive power: |
AM/FM/CW: 1-10 W
SSB: 1-20 W (PEP)
|
| Power supply: | Mains: 220 VAC |
| Current drain / power consumption: | Max ? A |
| Impedance / connectors: | 40-75 ohm / Two SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | Italy, 198x-199x (Discontinued) |
| Other: | |
| Related documents: |
User manual (1.8 MB, In italian)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
