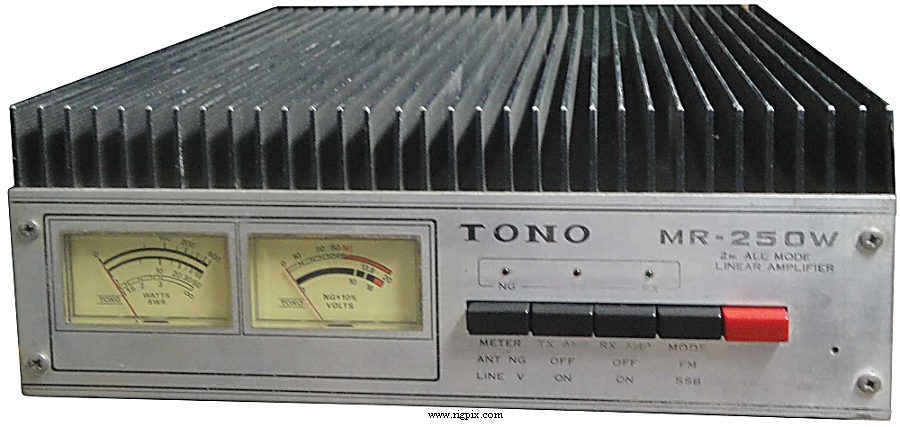

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 2 m |
| Output power: | 240 W |
| Drive power: | 10-40 |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max 30 A |
| Impedance / connectors: | 50 ohm / Two N-jacks |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Other: | |
| Related documents: |
Schematic diagram (471 KB)
Four 2SC2630 bipolar RF power transistors
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
