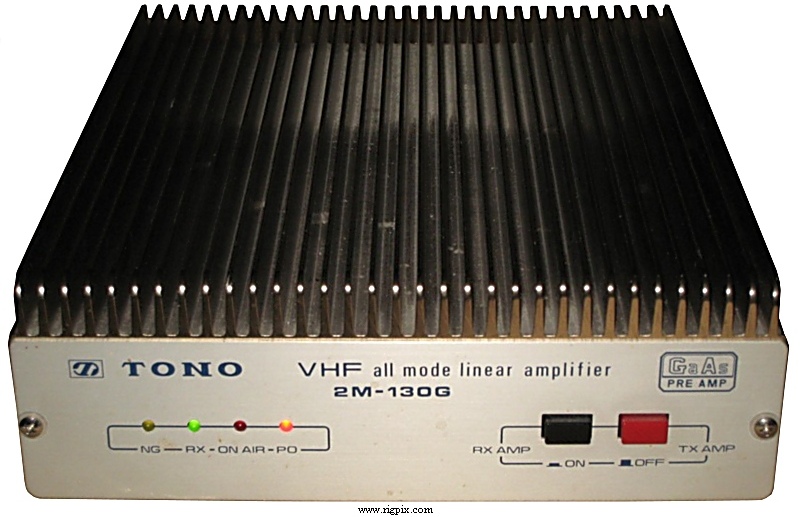

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 2 m |
| Output power: | 130 W |
| Drive power: | 1-15 W |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max 18 A |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 200*70*250 mm (7.87*2.76*9.84") |
| Weight: | ? Kg (? lb) |
| Manufactured: | 1983-198x (Discontinued) |
| Other: |
Built-in 15 dB GaAs-FET preamp.
New price 1984 in Sweden: SEK 1925:-.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
