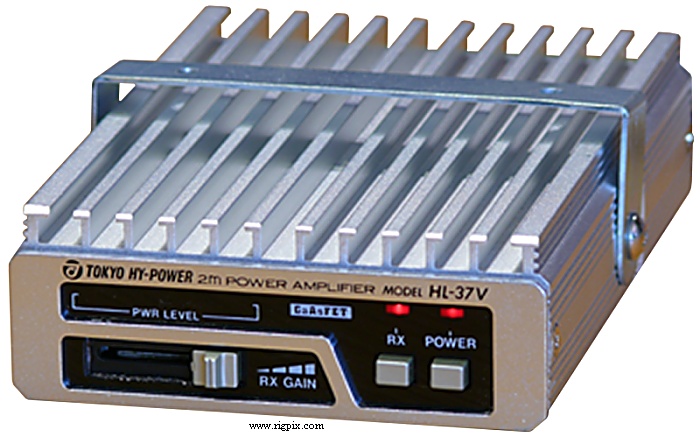

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 144-148 MHz (2 m) |
| Output power: | 30 W (Max 35 W) |
| Drive power: | 0.5-5 W (3 W typical) |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max 5 A |
| Impedance / connectors: | 50 ohm / Two SO-239 (M-jacks) |
| Dimensions (W*H*D): | 100*35*144 mm (3.94*1.38*5.67") |
| Weight: | 550 g (1.21 lb) |
| Manufactured: | Japan, 19xx-19xx (Discontinued) |
| Other: |
Internal FM/SSB switch.
Built-in adjustable (-20 to +14 dB) GaAs-FET preamp
|
| Related documents: |
Schematic (30 KB)
One 2SC1946A bipolar RF power transistor
LED level meter: LB1403N
|
