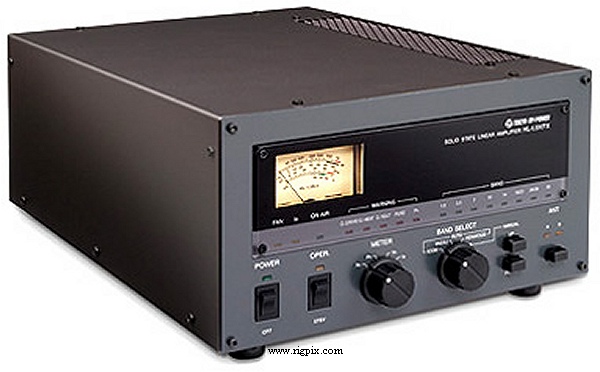

| Type: | Amateur HF/VHF linear amplifier |
| Frequency range / band(s): | 10-160 m + WARC / 6 m |
| Output power: |
SSB HF: 1 KW (PEP)
SSB 6 m: 650 W (PEP)
|
| Drive power: | 85 W (100 W max) |
| Power supply: | Mains: 100 / 110 / 115 / 120 / 200 / 220 / 230 / 240 VAC |
| Current drain / power consumption: | Max ? A |
| Impedance / connectors: | 50 ohm / Two SO-239 (M-jacks) |
| Dimensions (W*H*D): | 272*142*363 mm (10.7*5.6*14.3") |
| Weight: | 20 Kg (44.1 lb) |
| Manufactured: | Japan, 20xx-20xx (Discontinued) |
| Other: |
Built-in SWR-meter/multimeter. Full QSK.
|
| Related documents: |
User manual (1.8 MB)
Four SD2933 RF power MOSFETs
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
