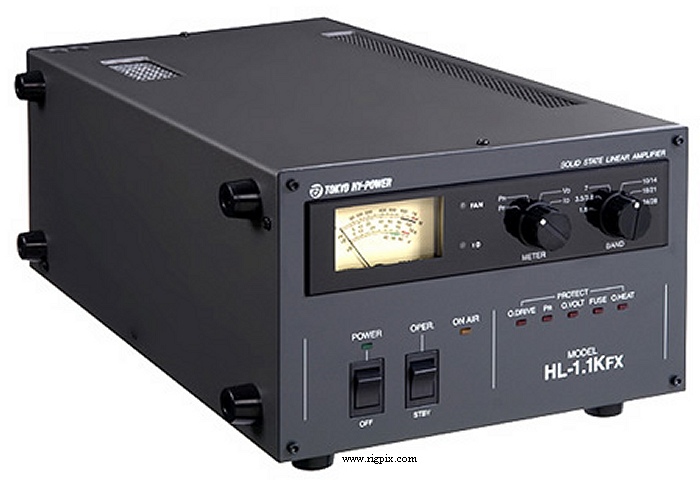

| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): | 10-160 m + WARC |
| Output power: |
SSB: 600 W (PEP)
RTTY: Max 400 W
|
| Drive power: | 65-90 W (100 W max) |
| Power supply: | Mains: 100-130 / 200-260 VAC |
| Current drain / power consumption: | Max 7.5 A @ 230 VAC
Max 15 A @ 115 VAC |
| Impedance / connectors: | 50 ohm / Two SO-239 (M-jacks) |
| Dimensions (W*H*D): | 232*145*392 mm (9.13*5.71*15.43") |
| Weight: | 9.5 Kg (20.1 lb) |
| Manufactured: | Japan, 20xx-20xx (Discontinued) |
| Other: |
Built-in SWR-meter/multimeter.
|
| Related documents: |
User manual (242 KB)
Four SD2933 MOSFETs
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
