| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): | 10-160 m + WARC |
| Output power: | 1.5 KW |
| Drive power: | 65 W for full output |
| Power supply: | Mains |
| Current drain / power consumption: | Max 20 A @ 240 VAC |

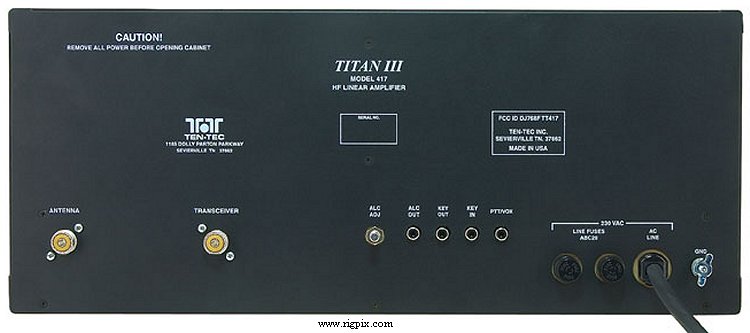

| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 483*216*508 mm (19*8.5*20") |
| Weight: | 36.2 Kg (79.8 lb) |
| Manufactured: | USA, 200x-2008 (Discontinued) |
| Other: |
New price 2006 in the US: $3695.00.
|
| Related documents: |

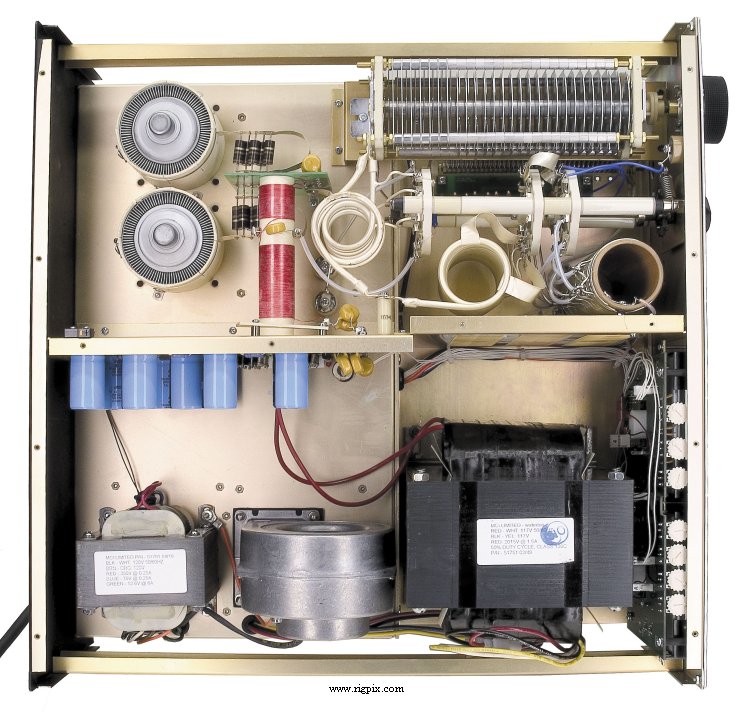

Two 4CX800A hi-perf ceramic tetrodes
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
