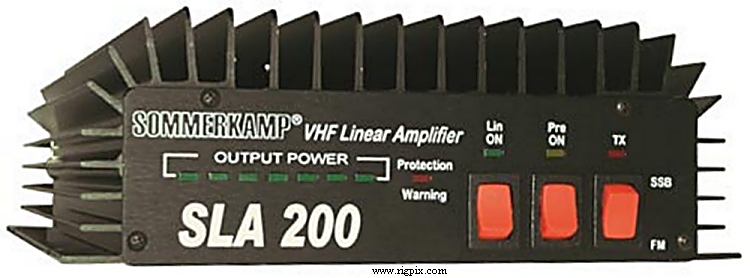

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 140-150 MHz (2 m) |
| Output power: | 80-250 W (Depending on drive level) |
| Drive power: | 5-50 W |
| Power supply: | 12-14 VDC |
| Current drain / power consumption: | Max 35 A |
| Impedance / connectors: | 50 ohm / Two ? |
| Dimensions (W*H*D): | 170*75*275 mm (6.7*2.95*10.83") |
| Weight: | 1.7 Kg (3.75 lb) |
| Manufactured: | 200x-20xx |
| Other: |
High SWR protection.
New price 2011 in Sweden: SEK 4500:-.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
