| Type: | HF linear amplifier |
| Frequency range / band(s): |
Standard (Export)
1.6-30 MHz
USA (FCC)
1.6-25 MHz
|
| Output power: | Max 400 W |
| Drive power: | 1-35 W (All modes) |
| Power supply: | 13.6 VDC ±1 Volt (Male 2-pin jack) |
| Current drain / power consumption: | Max 70 A |

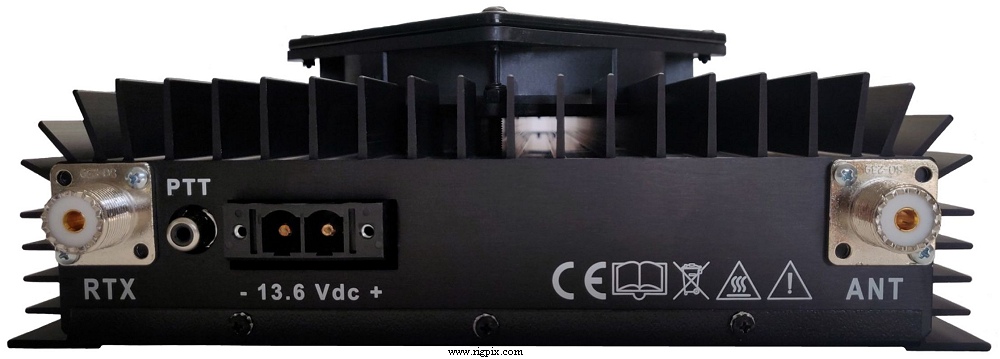

| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 242*92*420 mm (9.53*3.62*16.54") |
| Weight: | 4.6 Kg (10.14 lb) |
| Manufactured: | Italy, 2026-202x |
| Other: |
Six lowpass filters reduces unwanted harmonics.
Microprocessor control.
New price, september 2026 in Germany: € 925.00
New price, september 2026 in the UK: £969.95
|
| Related documents: |
User manual (686 KB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
