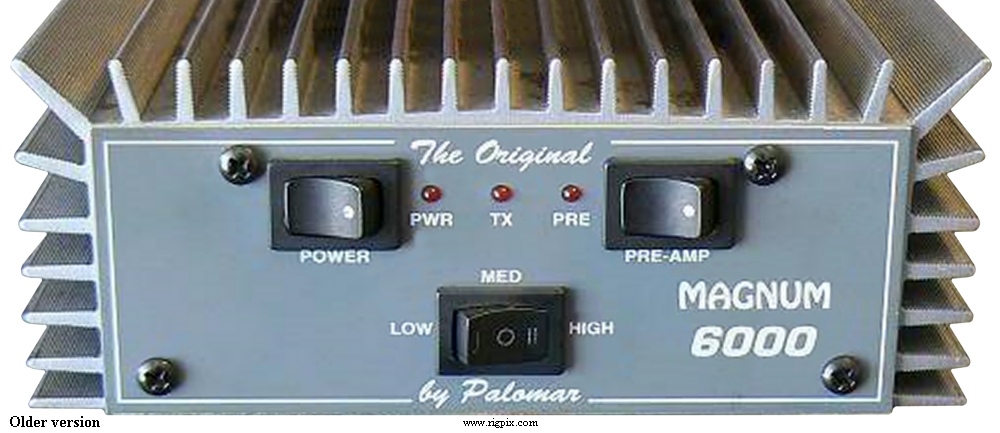

Palomar Magnum 6000
SPECIFICATIONS
| Type: | HF linear amplifier |
| Frequency range / band(s): | 26-30 MHz (10 / 11 m) |
| Output power: | 400 W (PEP) |
| Drive power: | Max 25 W (PEP) |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max ? A |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | 20xx-20xx (Discontinued) |
| Other: |
Filtered output.
|
| Related documents: |
Four 2SC2879 bipolar power transistors
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
