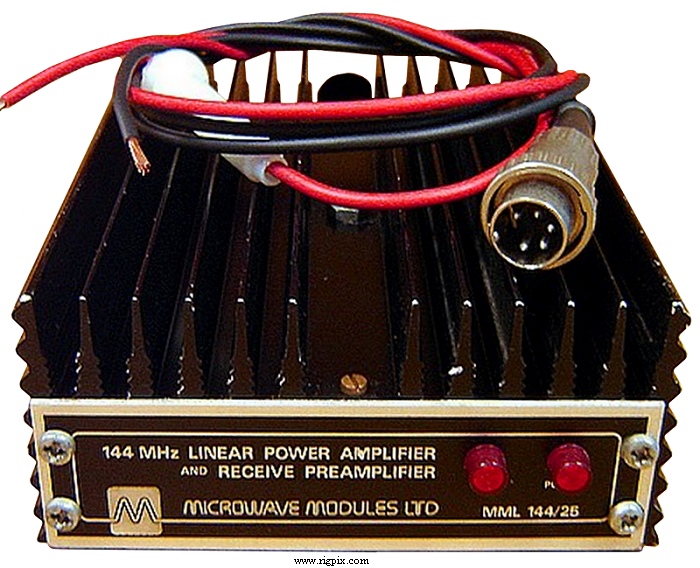

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 144-148 MHz (2 m) |
| Output power: |
25 W @ 3 W input
10 W @ 1 W input
|
| Drive power: | 1-3 W |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max ? A |

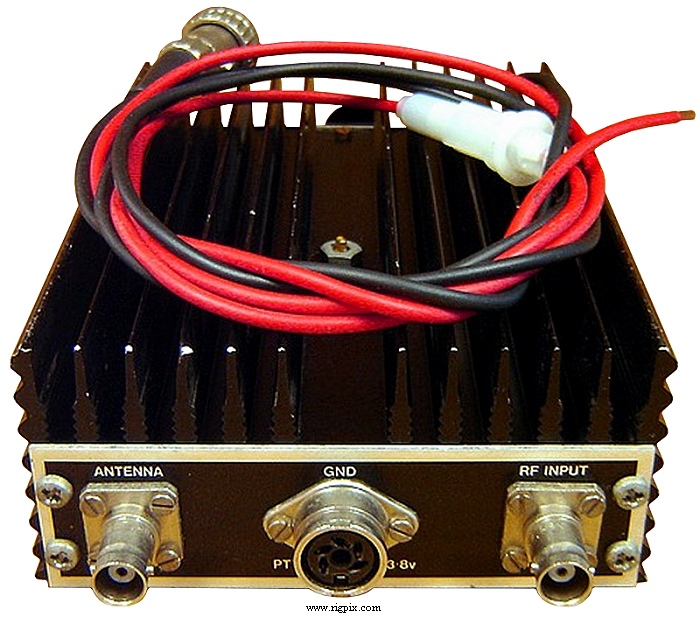

| Impedance / connectors: | 50 ohm / Two BNC jacks |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | England, 198x-198x (Discontinued) |
| Other: |
RF-VOX. Built-in preamp.
New price 1980 in England: £42.00.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
