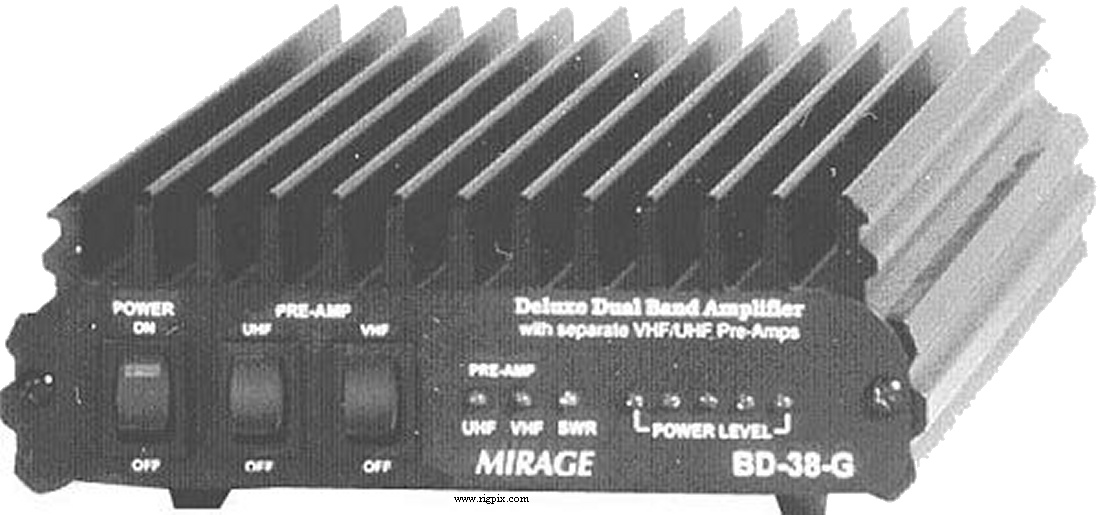

| Type: | Amateur VHF/UHF dual-band power amplifier |
| Frequency range / band(s): |
144-148 / 430-450 MHz (2 m / 70 cm)
|
| Output power: |
2 m: 80 W
70 cm: 60 W
|
| Drive power: | 0.25-5 W |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max 15 A |
| Impedance / connectors: | 50 ohm / Two ? |
| Dimensions (W*H*D): | 165*64*229 mm (6.5*2.5*9") |
| Weight: | ? Kg (? lb) |
| Manufactured: | 19xx-200x (Discontinued) |
| Other: |
GaAs-FET preamps. Full duplex (cross-band) possibility.
New price 2003 in the US: $349.95.
|
| Related documents: | User manual (169 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
