Linear Amp UK Discovery 6

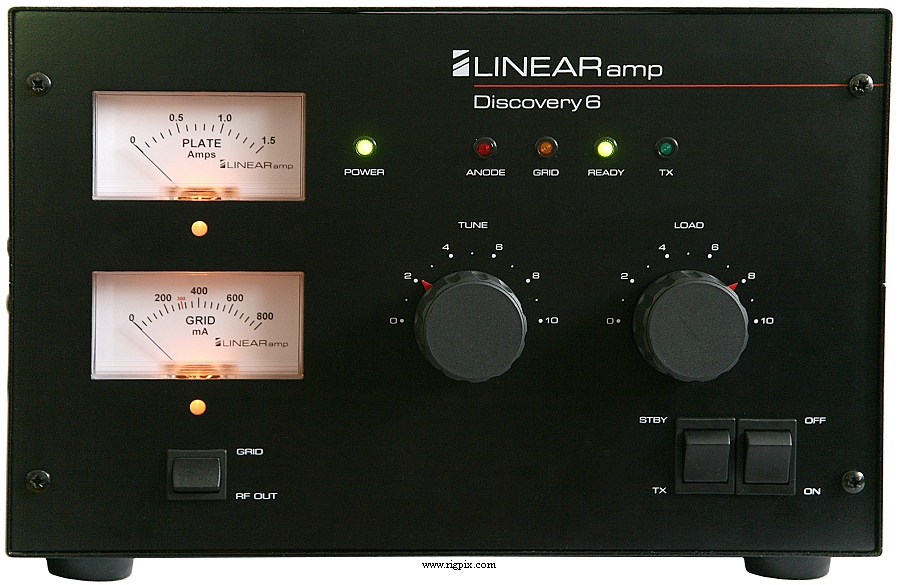

A picture of Linear Amp UK Discovery 6

SPECIFICATIONS

Type:Amateur VHF linear amplifier
Frequency range / band(s):50-54 MHz (6 m)
Output power:1.5 KW (100% duty cycle)
Drive power:Max 100 W
Power supply:Mains: 230 VAC
Current drain / power consumption:13 A @ 230 VAC
Impedance / connectors:50 ohm / Two N-jacks
Dimensions (W*H*D):360*250*430 mm (14*9.75*17")
Weight:29 Kg (63.9 lb)
Manufactured:England, 20xx-20xx
Other: Auto soft start, 3 minute warm up timer.
Related documents: One GS35b triode (3CX1500A7 option = lower drive & 1.8 KW output)
Modifications and fixes:
Reviews:
Options / Accessories:
- -
A rear picture of Linear Amp UK Discovery 6
