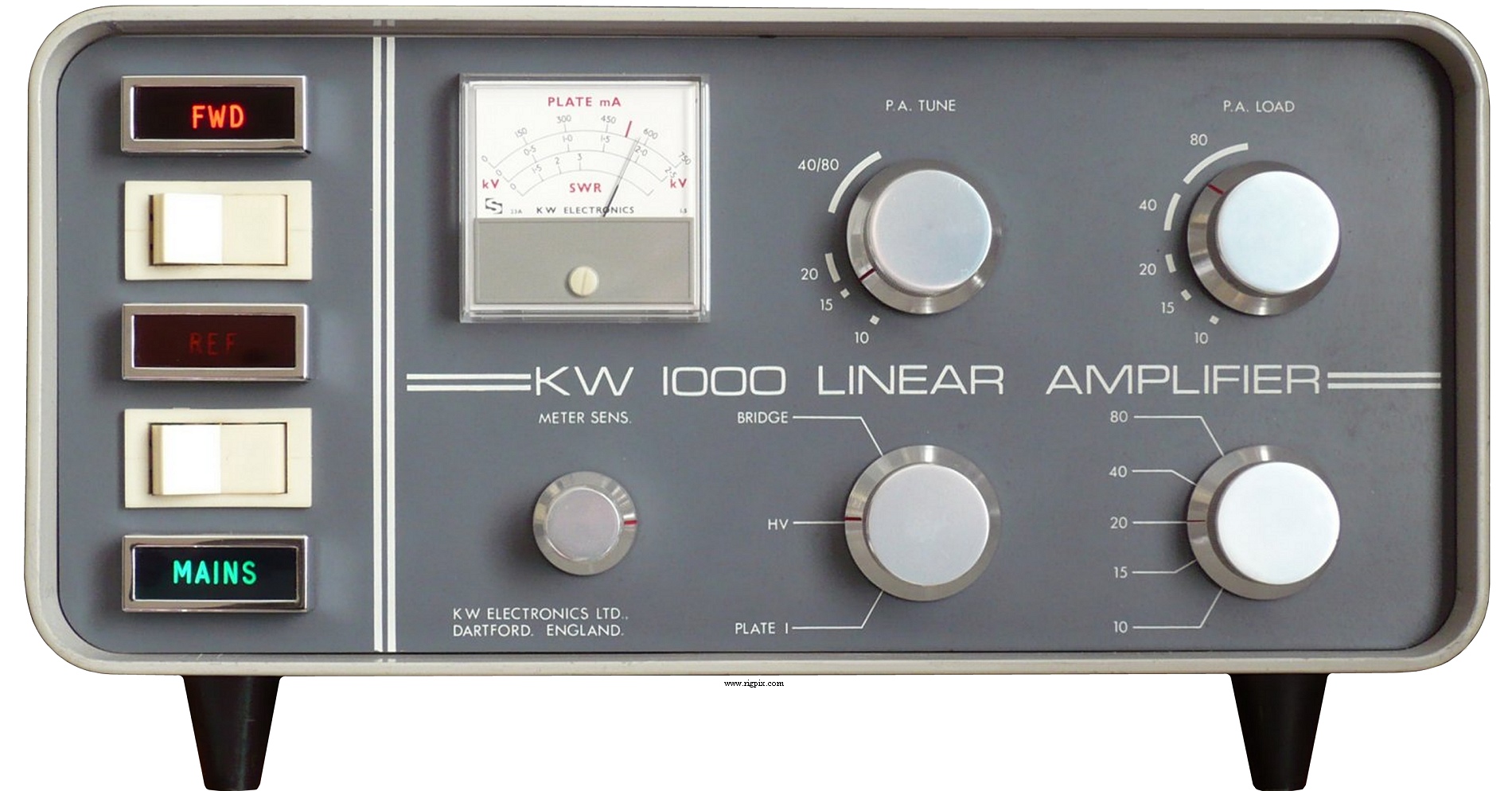

K.W.Electronics KW-1000
SPECIFICATIONS
| Type: | HF linear amplifier |
| Frequency range / band(s): | 10-80 m |
| Maximum output power: |
SSB: ~650 W (1200 W PEP input)
CW: 600 W
|
| Drive power: | 50-75 W |
| Power supply: | Mains |
| Current drain / power consumption: | ? VA |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | England, 196x-197x (Discontinued) |
| Other: |
New price, january 1968 in England: £128.00
|
| Related documents: |
Two 572B power triodes
|
| Modifications: | |
| Reviews: | |
| Options/Accessories: |
|
|
