| Type: | Amateur HF/VHF linear amplifier |
| Frequency range / band(s): |
Japanese domestic market
10-160 m + WARC / 50-54 MHz
|
| Output power: | HF: 1 KW
6 m: 500 W |
| Drive power: | Max 120 W |
| Power supply: | Mains: 100-240 VAC, single phase |
| Current drain / power consumption: | ? A |
| Impedance / connectors: | 50 ohm / Four + three SO-239 |
| Dimensions (W*H*D): | 233*444*450 mm (9.17*17.48*17.72") |
| Weight: | 28 Kg (61.73 lb) |
| Manufactured: | Japan, 2001-20xx |
| Other: |
Full QSK. Auto-ATU.

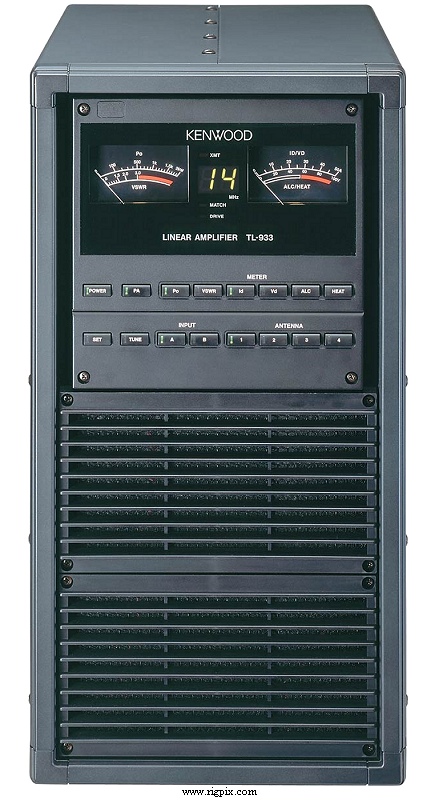

The control panel could be rotated in the
cabinet for tower or desktop configuration.
|
| Related documents: |
Sixteen 2SK410 HF/VHF power MOS FET's
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
