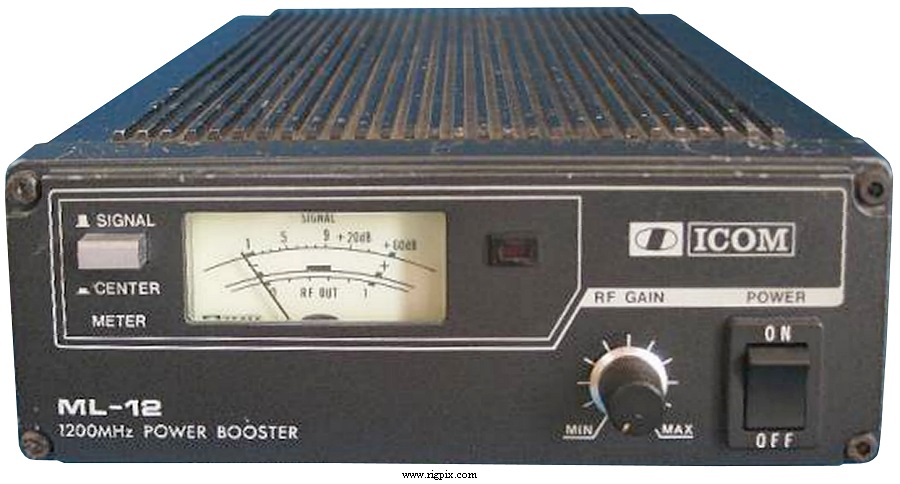

Icom ML-12
SPECIFICATIONS
| Type: | Amateur UHF power amplifier |
| Frequency range / band(s): | 1240-1300 MHz (23 cm) |
| Output power: | 10 W |
| Drive power: | ~1 W |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max 5.5 A |
| Impedance / connectors: | 50 ohm / Two ? |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Other: |
Built-in pre-amp with RF gain, max 10 dB.
Primarily made for Icom IC-120.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
|
