Daiwa LA-4150

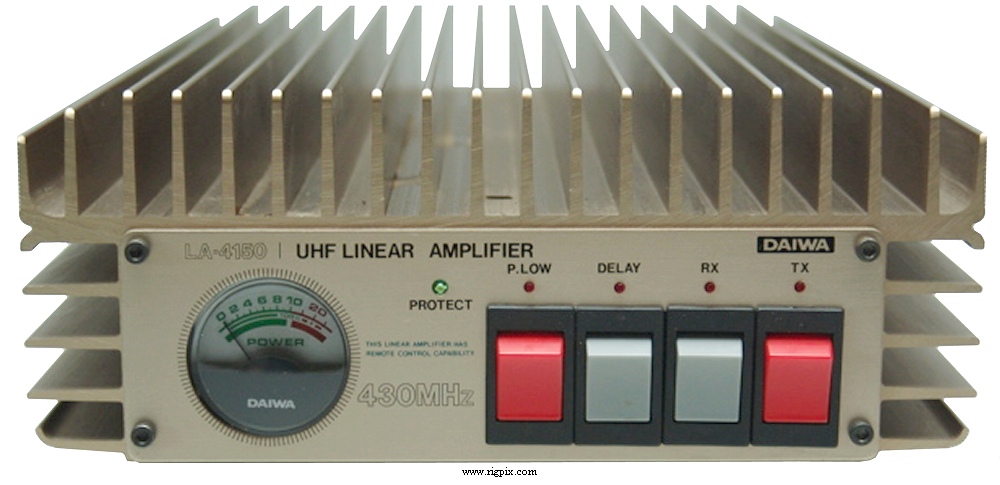

A picture of Daiwa LA-4150

SPECIFICATIONS

Type:Amateur UHF linear amplifier
Frequency range / band(s): Europe and Asia
430-440 MHz
USA
440-450 MHz
Output power:150 W
Drive power:1-25 W
Power supply:13.8 VDC
Current drain / power consumption:Max 35 A
Impedance / connectors: Europe and Asia: 50 ohm / Two N-jacks
USA: 50 ohm / Two SO-239 (M-jacks)
Dimensions (W*H*D):215*84*310 mm (8.5*3.3*12.2")
Weight:4.3 Kg (9.5 lb)
Manufactured:Japan, 198x-198x (Discontinued)
Other: Built-in 15 dB preamp.
Optional remote controller (C-100).
Related documents: User manual (238 KB)
Two 2SC3102 RF power transistors
Preamp GaAsFET: MGF1202
Modifications and fixes:
Reviews:
Options / Accessories:
- -
