Clegg Apollo 700 (By Squires-Sanders Inc.)

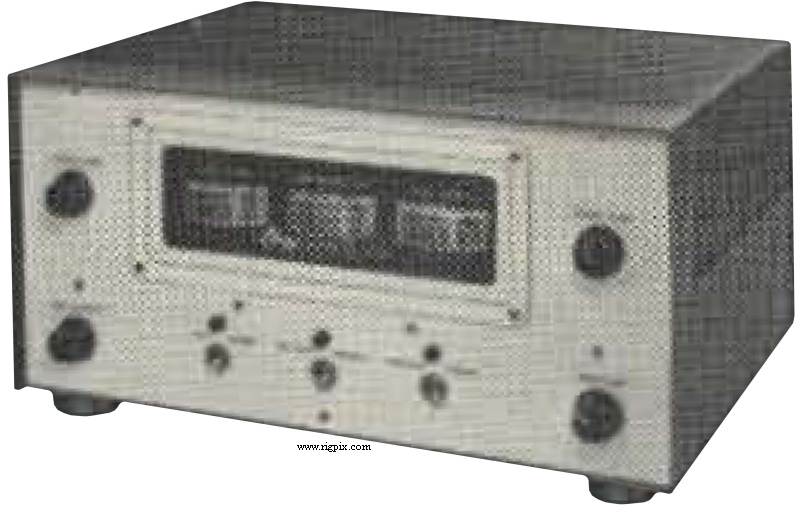

A picture of Clegg Apollo 700 (By Squires-Sanders Inc.)

SPECIFICATIONS

Type:Amateur VHF linear amplifier
Frequency range / band(s):50-54 MHz (6 m)
Output power:~400 W PEP (700 W PEP input)
Drive power:Max 10 W
Power supply:Mains
Current drain / power consumption:? VA
Impedance / connectors:50-75 ohm / Two ?
Dimensions (W*H*D):381*178*267 mm (15*7*10.5")
Weight:? Kg (? lb)
Manufactured:USA, 1964-196x (Discontinued)
Other:8236 finals
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
