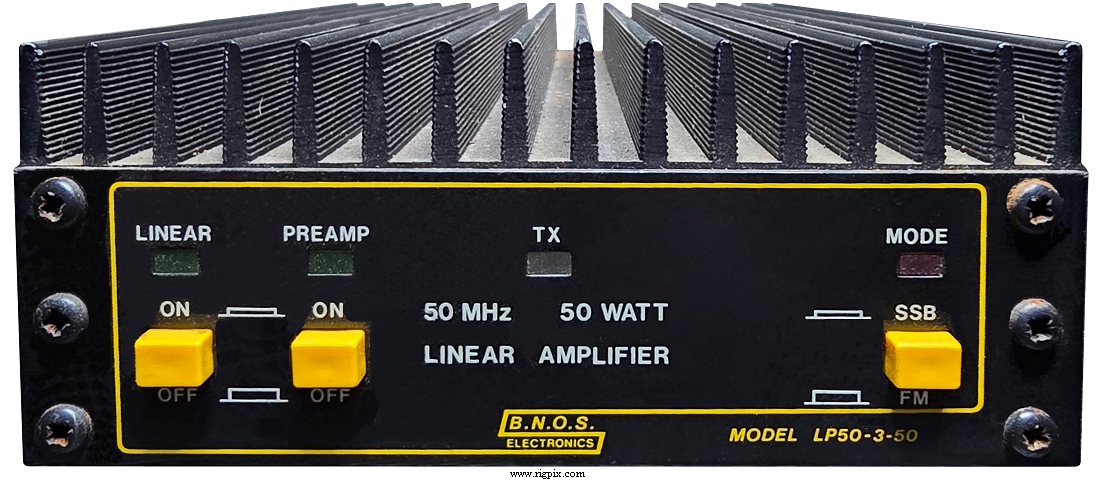

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 50-54 MHz (6 m) |
| Output power: | 50 W |
| Drive power: | 0.5-3 W |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | 7 A ±15% |

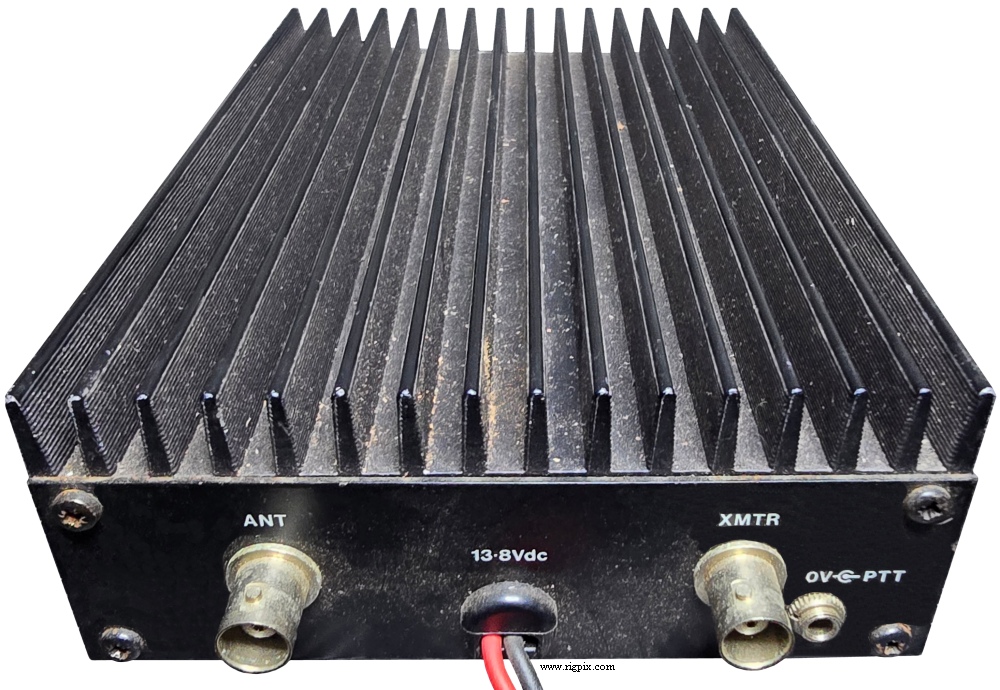

| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 122*48*178 mm (4.8*1.89*7") |
| Weight: | ? Kg (? lb) |
| Manufactured: | England, 198x-198x (Discontinued) |
| Other: |
Preamp 12 dB gain, better than 1.5 dB NF
New price 1986 in the UK: £135.00
New price 1987 in the UK: £175.00
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
