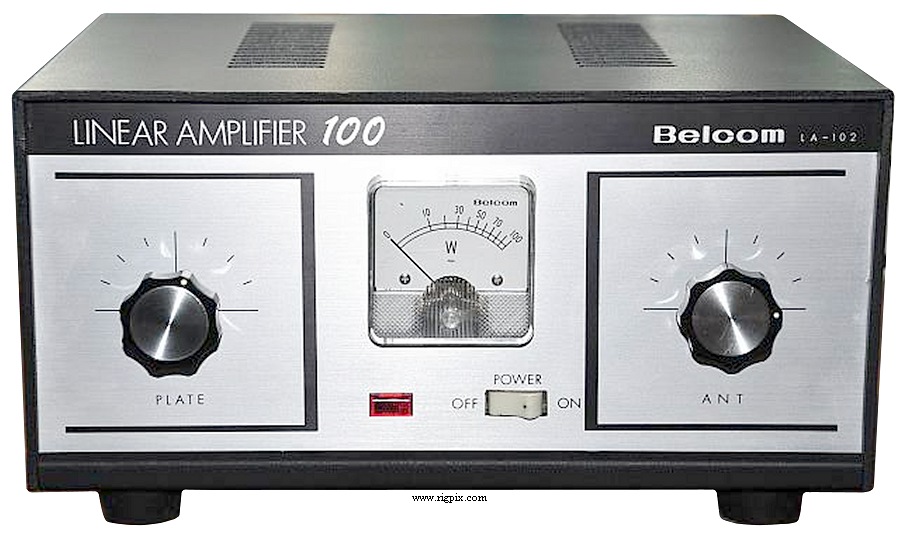

| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): | 14-30 MHz |
| Output power: | 100 W (PEP) |
| Drive power: | 1-10 W |
| Power supply: | Mains: 220 VAC 50/60 Hz |
| Current drain / power consumption: | Less than 180 W @ 220 VAC |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 250*120*200 mm (9.84*4.72*7.87") |
| Weight: | 7.5 Kg (16.53 lb) |
| Manufactured: | 197x-197x (Discontinued) |
| Other: | |
| Related documents: | One 6KD6 beam pentode |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
