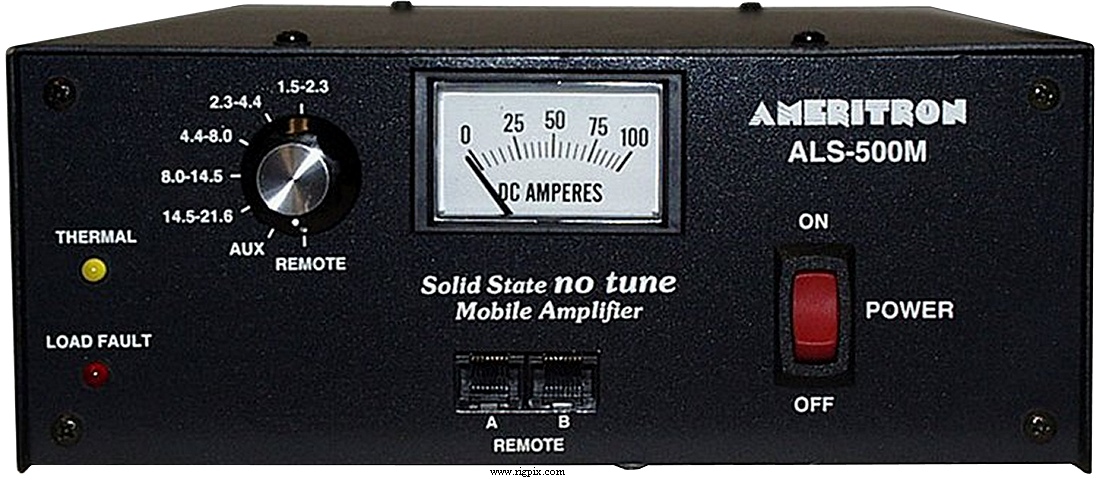

| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): |
Export
10-160 m + WARC
USA
15-160 m + WARC
|
| Output power: | SSB: 500 W (PEP)
CW: 400 W |
| Drive power: | Max 65 W (PEP) |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | 40 A average, 80 A peak |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 229*95*394 mm (9*3.75*15.5") |
| Weight: | 3.4 Kg (7.5 lb) |
| Manufactured: | USA, 200x-20xx (Discontinued) |
| Other: | |
| Related documents: |
User manual (472 KB)
Four 2SC2879 finals
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
