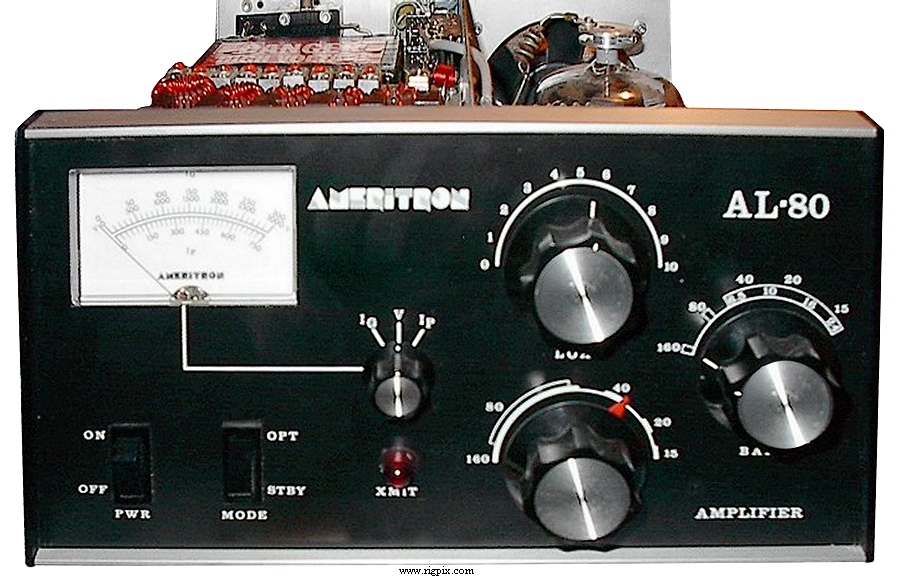

| Type: | Amateur HF linear amplifier |
| Frequency range / band(s): |
Export
10-160 m
USA
15-160 m
|
| Output power: |
SSB: ~1 KW (PEP)
CW/RTTY: ~600 W
|
| Drive power: | Max 65 W (PEP) |
| Power supply: | Mains: 117 / 234 VAC |
| Current drain / power consumption: | ? A |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | ? mm (?") |
| Weight: | ? Kg (? lb) |
| Manufactured: | USA, 1980-1984 (Discontinued) |
| Other: | |
| Related documents: |
User manual (311 KB)
One 3-500Z power triode
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
