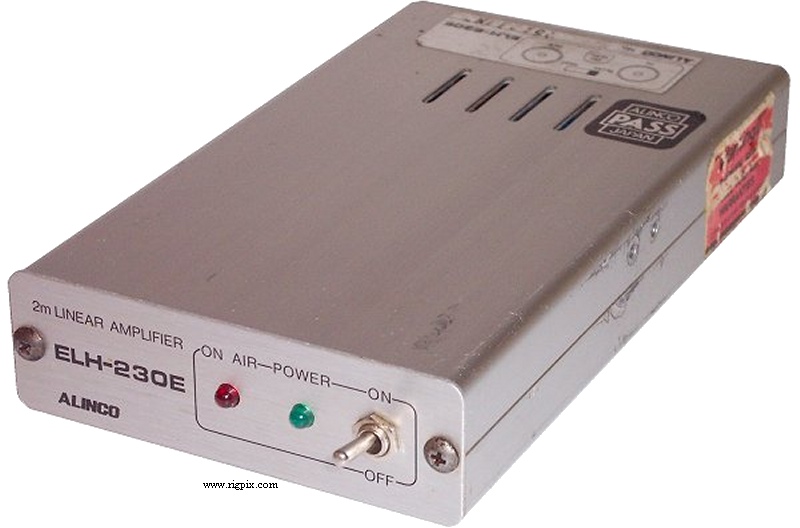

| Type: | Amateur VHF linear amplifier |
| Frequency range / band(s): | 144-146 MHz (2 m) |
| Output power: | 30 W |
| Drive power: | 1-3 W |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | Max 4 A |
| Impedance / connectors: | 50 ohm / Two SO-239 |
| Dimensions (W*H*D): | 90*30*180 mm (3.54*1.18*7.09") |
| Weight: | 290 g (10.23 oz) |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Other: |
New price 1983 in Sweden: SEK 550:-.
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
