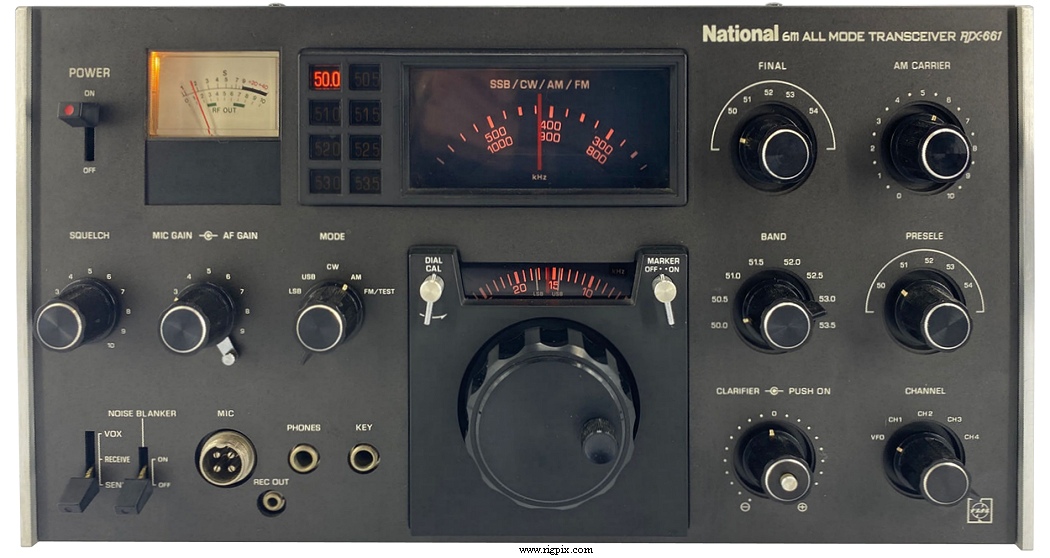

| GENERAL |
| Type: | Amateur VHF transceiver |
| Frequency range: |
50-54 MHz in eight 500 KHz ranges
|
| Tuning steps: | Analog / continuous |
| Frequency stability: | ±? ppm |
| Mode: | AM / FM / SSB / CW |
| Channels / memory management: |
4 optional
XTAL controlled
|
| Repeater shift / offset: | |
| Power supply: | Mains: 100 VAC (2-pin connector)
or 13.8 VDC (2-pin metal locking ring connector) |
| Current drain / power consumption: | RX: ? mA
TX: Max 3 A @ 13.8 VDC |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 336*172*290 mm (13.23*6.77*11.42") |
| Weight: | 11.7 Kg (25.8 lb) |
| Other features: | VOX. NB. 100 KHz XTAL calibrator/marker. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (AM/SSB/CW)
1st IF: 15 MHz
2nd IF: 9 MHz
Triple conversion superheterodyne (FM)
1st IF: 15 MHz
2nd IF: 9 MHz
3rd IF: 455 KHz
|
| Sensitivity: |
AM: 0.5 uV (10 dB S/N)
FM: 0.5 uV (26 dB S/N)
SSB/CW: 0.25 uV (10 dB S/N)
|
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
| Max Pwr |
|---|
| AM: | 4 W |
| FM: | 10 W |
| SSB (PEP): | 10 W |
| CW: | 10 W |
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±? KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 4-pin (Metal locking ring connector) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan (By Matsushita), 1975-197x (Discontinued) |
| Additional info: | Marketed in the US as KLM RJX-661 |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
