Trident TR-1200 (By Nevada Communications)

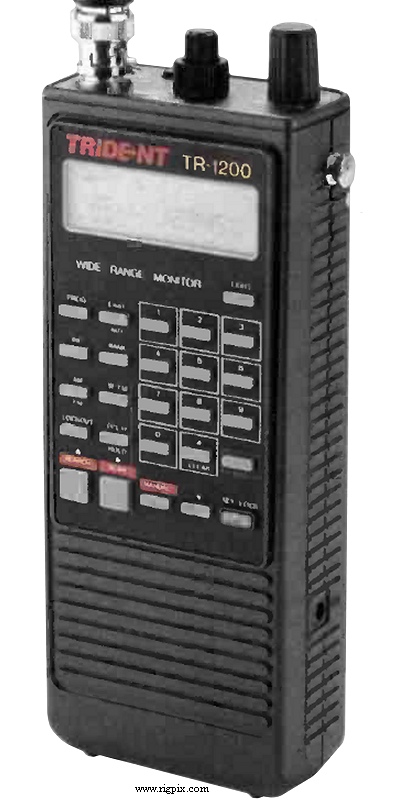

A picture of Trident TR-1200 (By Nevada Communications)

SPECIFICATIONS

GENERAL
Type:VHF/UHF receiver/scanner
Frequency range: 0.5-600 / 800-1300 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / FM / WFM
Channels / memory management: 1000 regular in 10 banks
Power supply:4.8-6 VDC (Four R6 / AA alkaline or NiCd batteries)
or 12 VDC external
Current drain / power consumption:90 mA (Squelched)
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):65*170*35 mm (2.56*6.69*1.38")
Weight:280 g (9.88 oz), without batteries
Other features:




RECEIVER SECTION
Receiver system: ? conversion superheterodyne
Sensitivity: FM: 0.5 uV (12 dB SINAD)
WFM: 1 uV (20 dB S/N)
Selectivity:
Image rejection:
AF output power / speaker:? mW at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Japan, 1994-1995 (Discontinued)
Additional info: New price, june 1994 in the UK: 299.00
Also sold as Camnis HSC-010
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -
