Stampfl Mini-SWRX

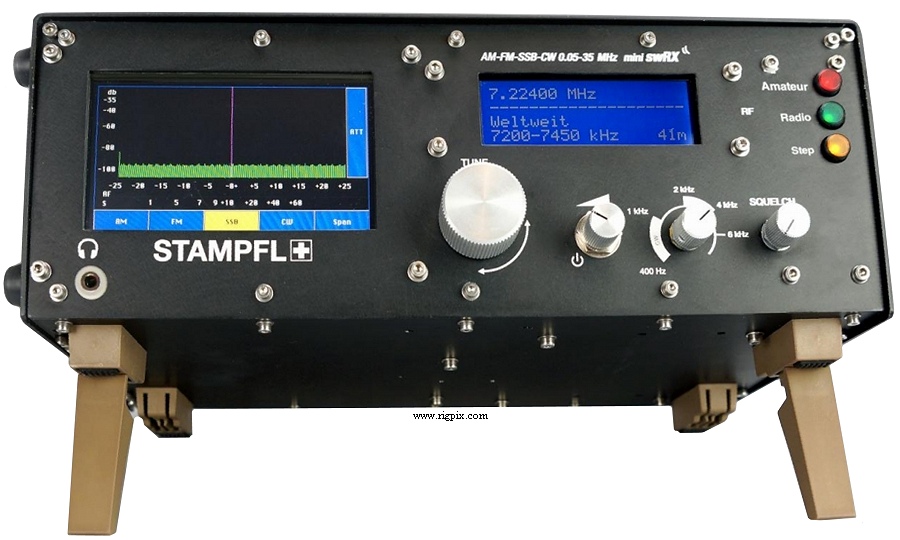

A picture of Stampfl Mini-SWRX

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.05-35 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / FM / SSB / CW
Channels / memory management:
Power supply:11-14 VDC, batteries or external
Current drain / power consumption:Max 2 A
Antenna impedance / connector:50 ohm / BNC
Dimensions (W*H*D):300*110*180 mm (11.81*4.33*7.09")
Weight:1.4 Kg (3.09 lb)
Other features:TFT with touch screen. Spectrum scope. DDS.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Switzerland, 2013-201x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -

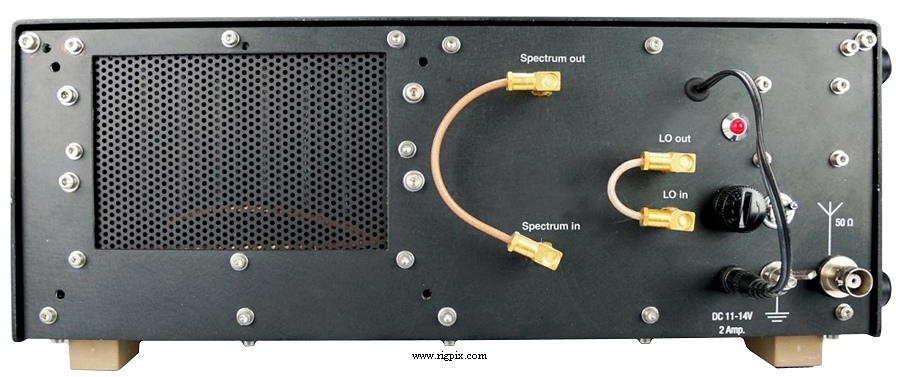

A rear picture of Stampfl Mini-SWRX
