Stampfl Micro-SWRX

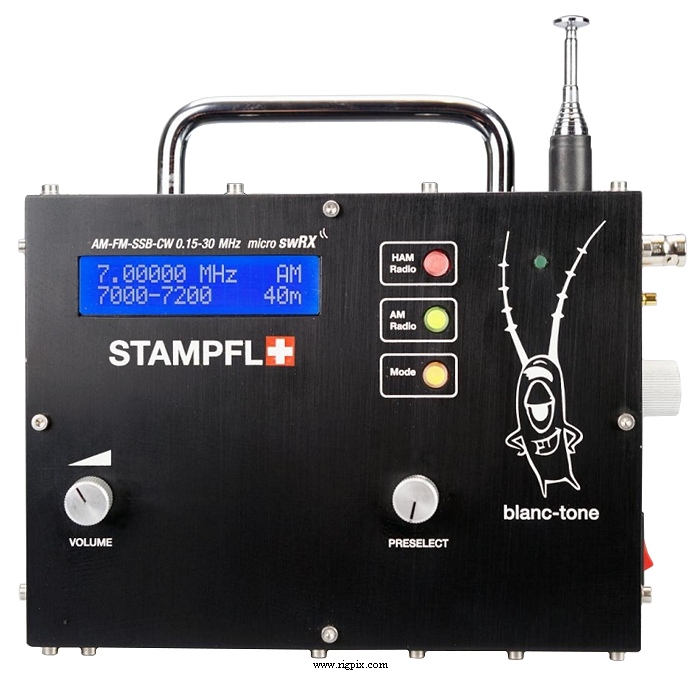

A picture of Stampfl Micro-SWRX

SPECIFICATIONS

GENERAL
Type:HF receiver
Frequency range: 0.15-30 MHz
Tuning steps:? KHz
Frequency stability:? ppm
Mode:AM / FM / SSB / CW
Channels / memory management: ? regular
Power supply:12 VDC
Current drain / power consumption:Max 400 mA
Antenna impedance / connector:50 ohm / BNC
- / Built-in telescopic whip
Dimensions (W*H*D):170*125*50 mm (6.69*4.92*1.97")
Weight:600 g (1.32 lb)
Other features:10.7 MHz IF output.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
Sensitivity:
Selectivity:
Image rejection:
AF output power / speaker:? W at ?% distortion / ? ohm
External speaker connector:




MISCELLANEOUS
Manufactured:Switzerland, 2013-201x (Discontinued)
Additional info:
Related documents:
Modifications and fixes:
Reviews:
Options / Accessories:
- -

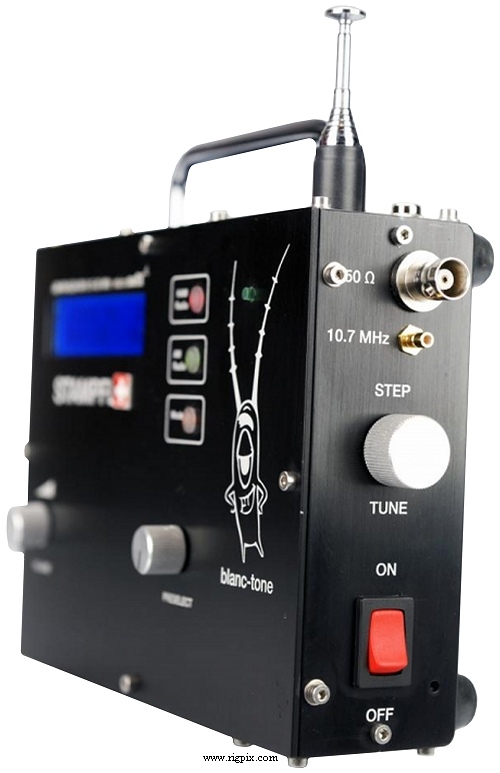

A side picture of Stampfl Micro-SWRX
