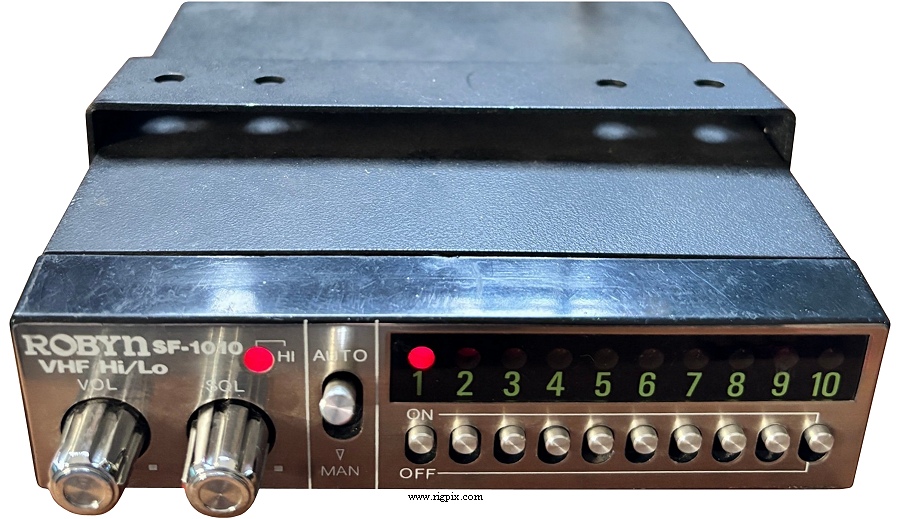

| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: | 76-82 / 163-171 MHz |
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
20 regular (10+10)
XTAL controlled (Sockets for 20 XTALs)
|
| Power supply: | 13.8 VDC (Male barrel jack, center positive) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50-75 ohm / DIN41585 (Motorola) |
| Dimensions (W*H*D): | 133*34*148 mm (5.24*1.34*5.83") |
| Weight: | 665 g (1.47 lb), without mobile bracket |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz - Ceramic filter: Murata CFU455E
|
| Sensitivity: | 0.5 uV (No SINAD reference) |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: |
15 KHz (-6 dB)
30 KHz (-40 dB)
|
| Image rejection: | |
| AF output power / speaker: | ? W at ?% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: |
PCB: TC1250A by ?
|
| Related documents: |
FM-IF: MC3357P
AF amplifier: LM384N
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
