| GENERAL |
| Type: | VHF receiver/scanner |
| Frequency range: |
78-84 / 164-172 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
8 regular
One XTAL per channel
|
| Power supply: | Mains: 220 VAC
or 13.8 VDC |
| Current drain / power consumption: | ? mA @ 13.8 VDC |

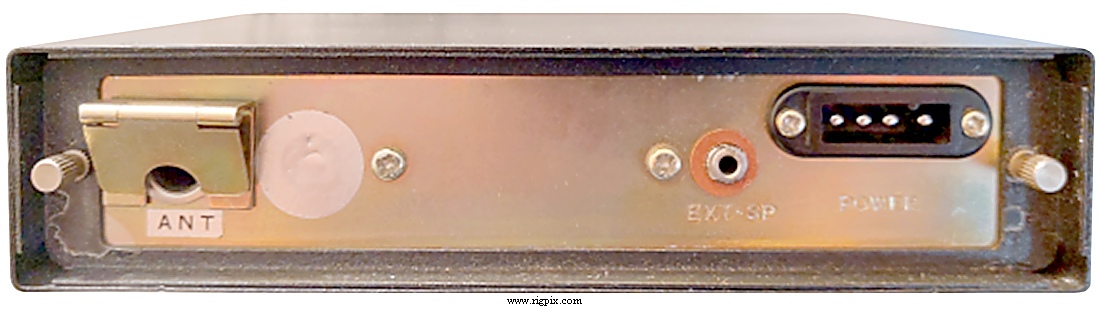

| Antenna impedance / connector: | 50 ohm / F-jack |
| Dimensions (W*H*D): | 195*44*226 mm (7.7*1.73*8.9") |
| Weight: | 1.7 Kg (3.75 lb) |
| Other features: | Variable scanning speed. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 10.7 MHz
2nd IF: 455 KHz
|
| Sensitivity: |
VHF low: 0.7 uV (20 dB quieting)
VHF high: 0.8 uV (20 dB quieting)
|
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | 2.2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 197x-197x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
