| GENERAL |

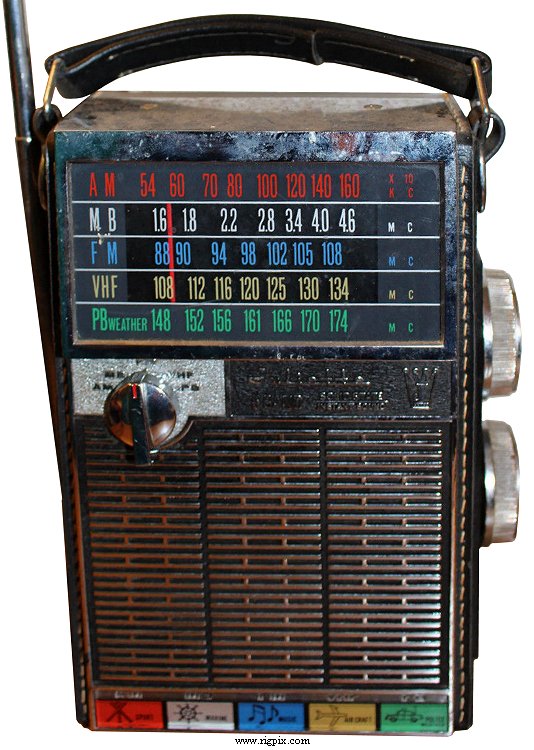

| Type: | HF/VHF receiver |
| Frequency range: |
0.535-1.605 MHz
1.6-4.6 MHz
88-108 MHz
108-134 MHz
148-174 MHz
|
| Tuning steps: | Continuous |
| Mode: | AM/FM/WFM (depending on band) |
| Channels/memory management: | No |
| Power supply: | Mains: 117 VAC or 6 VDC (4*LR14 / C batteries) |
| Current drain/power consumption: | ? mA @ 6 VDC |
| Antenna impedance/connector: | ? ohms / Built-in telescopic whip and ferrite bar |
| Dimensions (W*H*D): | 180*240*100 mm (7.08*9.45*3.94") |
| Weight: | ? Kg (? lbs) |
| Other features: | Backlit dial |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: | ? conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz |
| Sensitivity: | |
| Selectivity: | |
| Image rejection: | |
| AF output power/speaker: | 400 mW at ?% distortion / 8 ohms |
| External speaker connector: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1970-1970 (Discontinued) |
| Additional info: | New price 1970 in the UK: 36 GNS (£37.80) |
| Related documents: | |
| Modifications: | |
| Options/Accessories: |
|
