| GENERAL |
| Type: | HF/VHF receiver |
| Frequency range: |
0.15-30 / 64-108 MHz
|
| Tuning steps: | 10 / 1 KHz, 10 Hz |
| Frequency stability: | ? ppm |
| Mode: | AM / WFM / SSB |
| Channels / memory management: | None |
| Power supply: | 3.7 VDC (800 mAh Li-Ion battery) |
| Current drain / power consumption: | ? mA |
| Antenna impedance / connector: | 50 ohm / SMA female
The headphone wire can also be used as an antenna |
| Dimensions (W*H*D): | 80*35*20 mm (3.15*1.38*0.79") |
| Weight: | 57 g (2.01 oz) |
| Other features: |
1.9" color display (170*320 pixels) with selectable backlite color.
USB-C charging.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
SoC (Si4732 A10)
|
| Sensitivity: | |
| Squelch sensitivity: | |
| Noise figure: | |
| Selectivity: | |
| Image rejection: | |
| AF output power / speaker: | ? mW at ?% distortion / ? ohm |
| External speaker connector: | TRS "Minijack" (3.5 mm) |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China, 2025-202x |
| Additional info: |

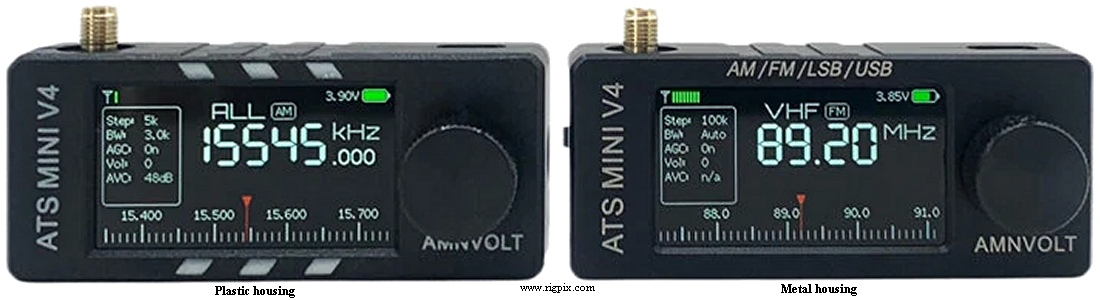

Available in either metal or plastic housing.
New price, november 2025 from the manufacturer: $30.99
|
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
