| GENERAL |

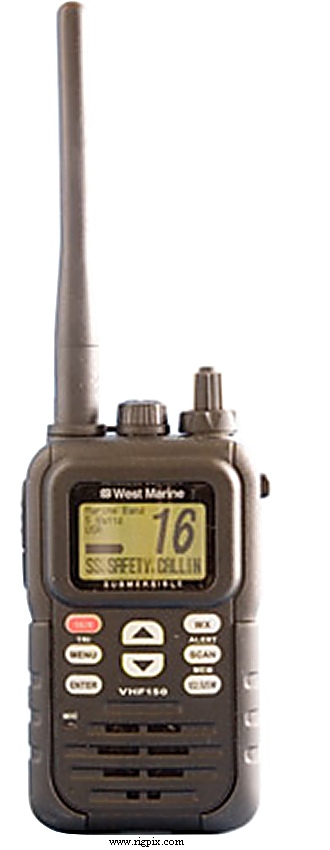

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.050-163.275 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 1.5 ppm @ 25°C (77°F) |
| Mode: | FM |
| Channels / memory management: |
All US, Canadian and international channels
10 NOAA weather channels
Alpha tags
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 5.5-7.5 VDC or 12-14 VDC external |
| Current drain / power consumption: | RX: 60-210 mA
TX: Max 1.4 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 62*97*33 mm (2.4*3.8*1.3") |
| Weight: | 250 g (8.8 oz), with battery and antenna |
| Other features: |
Channel 16/9 button. Weather alert/FIPS. Dual/triwatch. Scanning.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.2 uV (12 dB SINAD) |
| Squelch sensitivity: | 0.1 uV (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 400 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 5 W
Mid: 2.5
Low: 1 W
NB! The high output level is not available with alkaline batteries
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dBc |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | China (By Uniden), 2006-201x (Discontinued) |
| Additional info: |
FCC ID: AMWUT607A
|
| Related documents: | User manual (2.7 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AC250
ANT150
BP250LI
BT250
CLIP250
DC250
HHSPM
RSC250
VOX100
|
AC adapter
Flexible antenna
Li-Ion battery pack. 7.4 V, 1400 mAh
Battery case (Four LR03 / AAA alkaline batteries)
Belt clip
DC adapter
Speaker-microphone
Charging cradle
Headset
|
|
