| GENERAL |

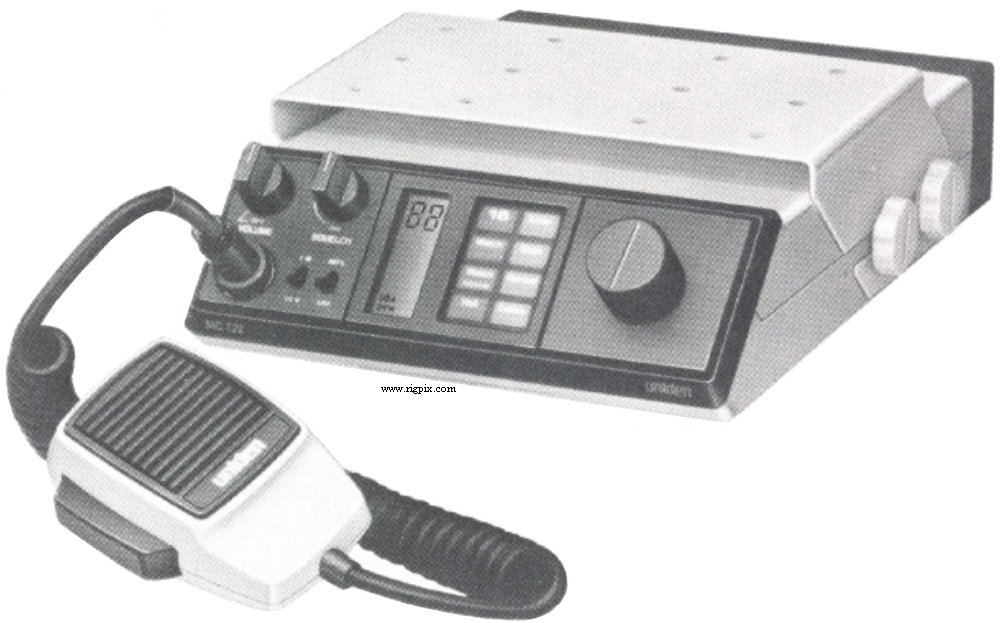

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156-158 MHz
RX: 156-163 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±0.0005% @ -20 to +50°C (-4 to +122°F) |
| Mode: | FM |
| Channels / memory management: |
US and international channels
9 NOAA weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.8 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 0.6-1.2 A
TX: Max 4.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 185*58*250 mm (7.25*2.25*9.84") |
| Weight: | 2.04 Kg (4.5 lb) |
| Other features: |
Channel 16 button. Scanning. Intercom. Hailer.
Reversible front panel.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.3 uV (12 dB SINAD) |
| Squelch sensitivity: | 0.2 uV (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | 75 dB |
| AF output power / speaker: | 3.5 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | 600 ohm / 4-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Taiwan, 1984-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (2.6 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
