| GENERAL |

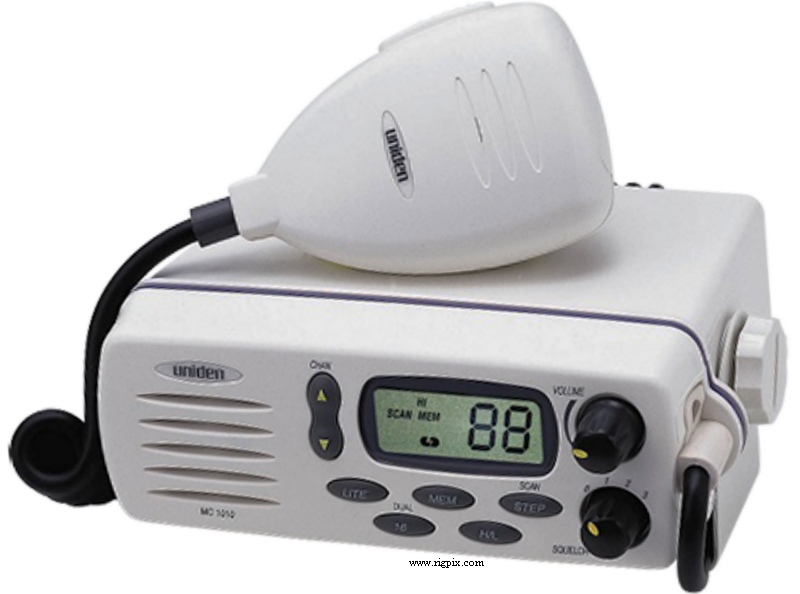

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.050-163.275 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±1.58 KHz @ -20 to +50°C (-4 to +122°F) |
| Mode: | FM |
| Channels / memory management: |
All international, US and Canadian channels
10 NOAA weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.8 VDC |
| Current drain / power consumption: | RX: 230-700 mA
TX: Max 4.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 158*61*203 mm (6.2*2.4*8") |
| Weight: | 1.09 Kg (2.4 lb) |
| Other features: | Channel 16/9 button. Triwatch. Scanning. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Squelch sensitivity: | 0.5 uV (Threshold) |
| Selectivity: | 60 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -65 dB |
| Microphone impedance / connector: | 1 Kohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Philippines, 1997-20xx (Discontinued) |
| Additional info: |
FCC ID: AMWUT868
|
| Related documents: | User manual (249 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
