Standard Horizon GX-1700E "Explorer"

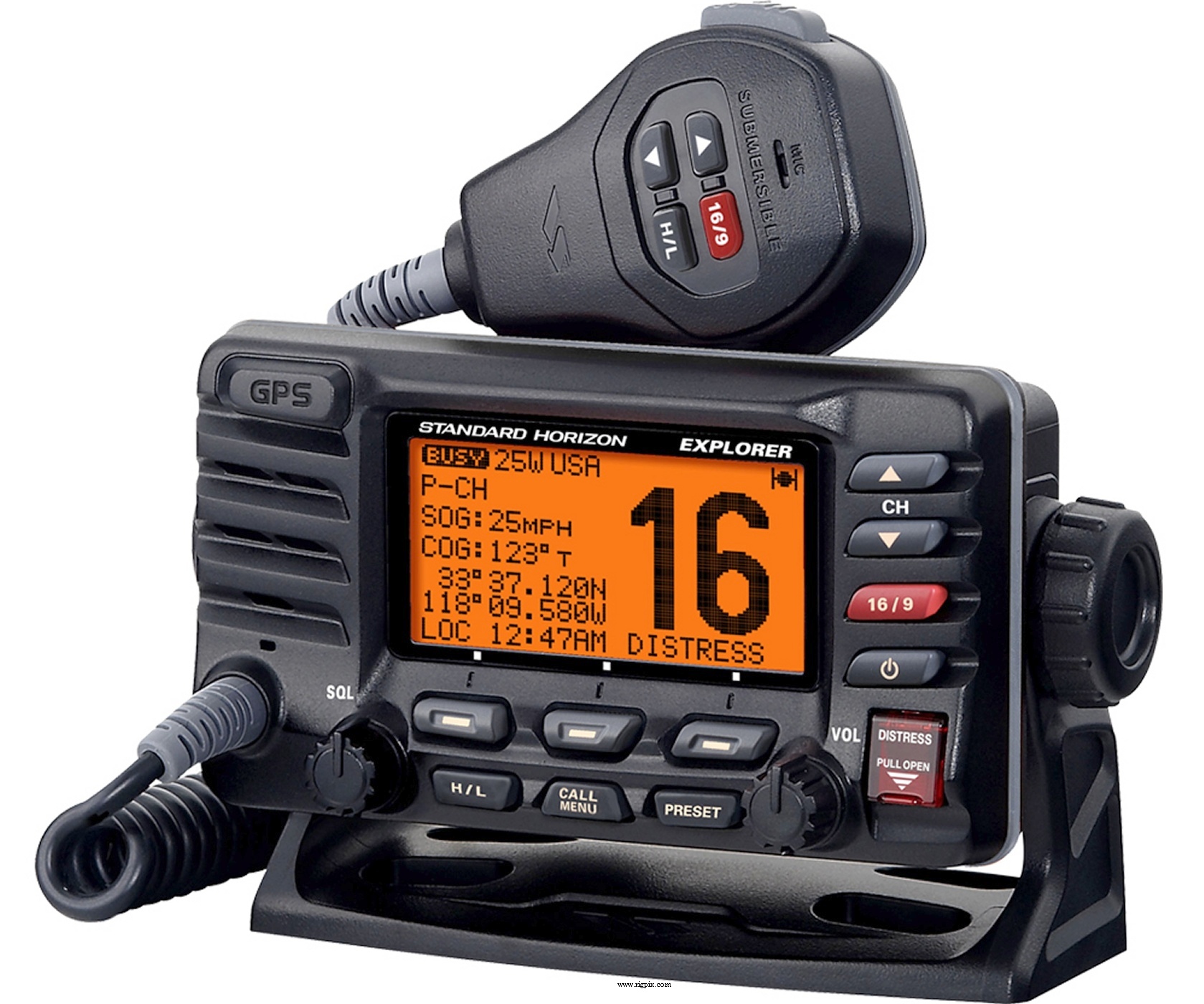

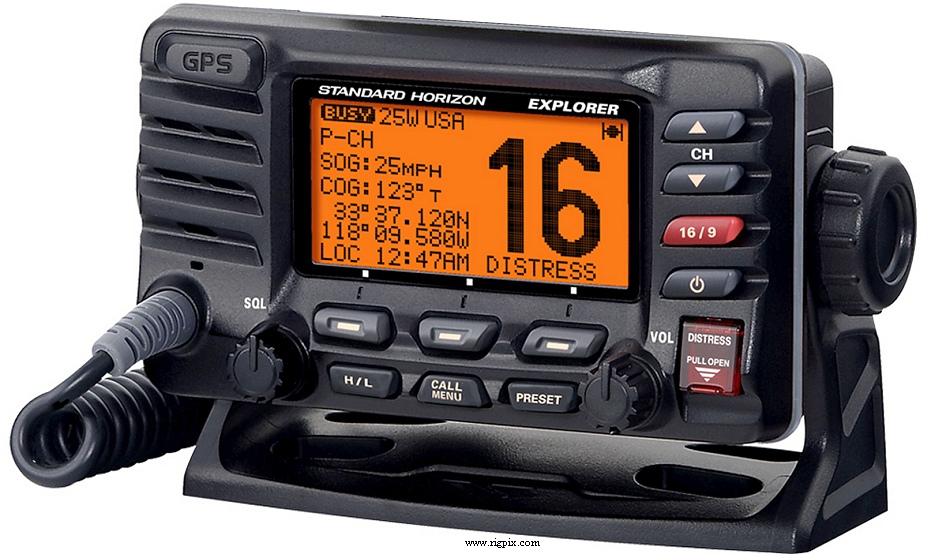

A picture of Standard Horizon GX-1700E ''Explorer''

SPECIFICATIONS

GENERAL
Type:Marine VHF transceiver
Frequency range: TX: 156.025-161.600 MHz
RX: 156.050-163.275 MHz
Tuning steps:Channelized
Frequency stability:±0.0003% @ -20 to +60°C (-4 to +140°F)
Mode:FM
Channels / memory management: All US, international and Canadian channels
10 NOAA weather channels
10 favorite
Duplex shift / offset:Automatic according to bandplan
Power supply:11-16.5 VDC
Current drain / power consumption:RX: 450-800 mA
TX: Max 5 A
Antenna impedance / connector:50 ohm / SO-239
Dimensions (W*H*D):150*85*90 mm (5.9*3.4*3.5")
Weight:900 g (2 lb)
Other features: Channel 16/9 button. Class D DSC. Dual watch. Scanning. Weather alert.
Nav functions. Built-in GPS. NMEA in/out.




RECEIVER SECTION
Receiver system: Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
Sensitivity:0.35 uV (20 dB quieting)
Squelch sensitivity:0.13 uV (Threshold)
Selectivity:
Image rejection:80 dB (Voice)
75 dB (DSC)
AF output power / speaker:4.5 W at ?% distortion / 4 ohm
External speaker connector:




TRANSMITTER SECTION
RF output power: High: 25 W
Low: 1 W
Modulation system:
Max FM deviation (Factory set):±5 KHz
Spurious emissions:Better than -80 dBc (High)
Microphone impedance / connector:? ohm / 8-pin
Microphone input level:? mV




MISCELLANEOUS
Manufactured:China, 2011-20xx (Discontinued)
Additional info: FCC ID: K6630483X3D
Related documents:User manual (4.3 MB)
Modifications and fixes:
Reviews:
Options / Accessories:
CMP31B
CMP31W
CT-100
HC1600
MLS-300
MLS-310
MMB-97
Q7000619A
Remote-access RAM3+ microphone. Black
Remote-access RAM3+ microphone. White
Extension cable for RAM3+ microphone. 7 m (23 ft)
Dust cover. White
External speaker
Amplified external speaker. 10 W & on/off volume control
Flush-mount bracket
External GPS-antenna with 9.1 m (30 ft) of cable
