| GENERAL |

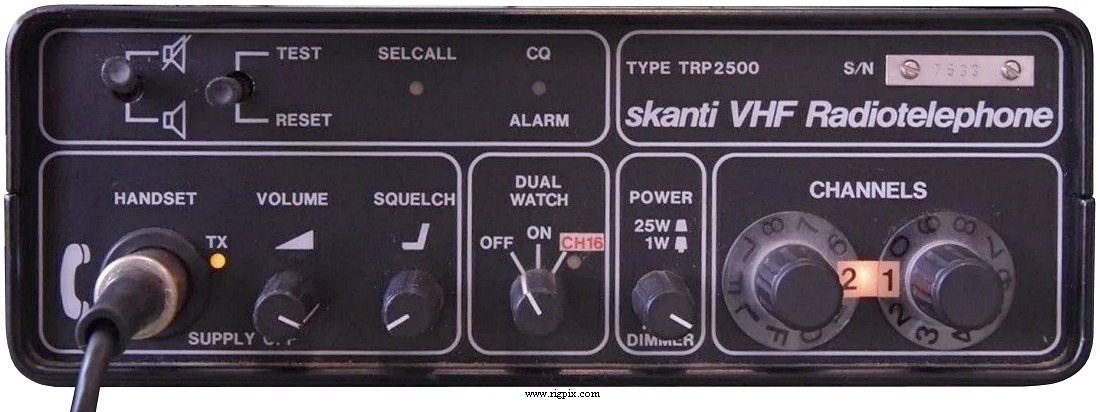

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 155-159 MHz
RX: 155-159 / 159.6-163.6 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±1.5 KHz @ -15 to +55°C (5 to 131°F) |
| Mode: | FM |
| Channels / memory management: |
International and US channels
20 private
2 NOAA weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.2 VDC (24 VDC option) |
| Current drain / power consumption: | RX: Max 600 mA
TX: Max 5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 210*72*251 mm (8.27*2.84*9.88") |
| Weight: | 1.9 Kg (4.19 lb), without mounting bracket and options |
| Other features: |
Dual watch. Dimmer. Selcall option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.35 uV (20 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 4 W at 5% distortion / 4 ohm |
| External speaker connector: | 2-pin jack, 4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -? dB |
| Microphone impedance / connector: | ? ohm / 5-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1982-19xx (Discontinued) |
| Additional info: | |
| Related documents: | User/service manual (41.6 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
?
?
|
24 to 12 VDC converter unit
Selcall unit
|
|
