| GENERAL |

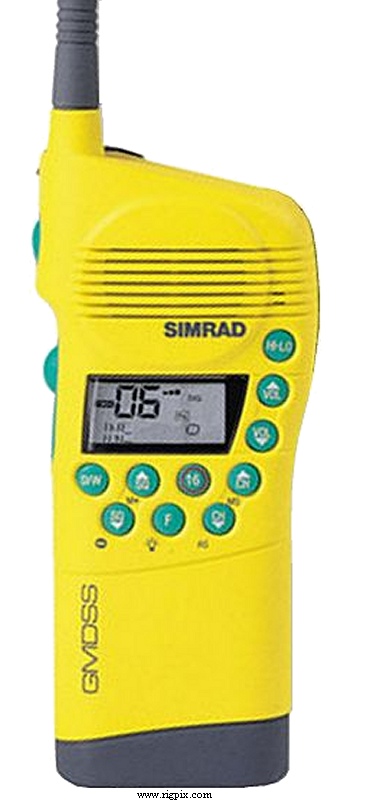

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.300-156.875 MHz
RX: 156.300-156.875 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ? ppm |
| Mode: | FM |
| Channels / memory management: |
21 (Channel 6, 8-17, 67-69, 71-77)
|
| Duplex shift / offset: | No |
| Power supply: | ? VDC |
| Current drain / power consumption: | RX: 25-125 mA
TX: 0.8-1.4 A |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 69*177*42 mm (2.72*6.97*1.65") |
| Weight: | 600 g (1.32 lb) |
| Other features: | GMDSS compliant. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.5 uV (20 dB SINAD) |
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | 75 dB |
| AF output power / speaker: | 1 W at ?% distortion / ? ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 4 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Less than 1 nW |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | UK, 199x-20xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (735 KB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
CRC1
CTC1
FLT1
HS1
LC1
LTB1
LYD1
MAD230
NCB700
NCB850
RAD230
SS1
TCH12
WSPM1
|
Rapid charger
Trickle charger
Flotation collar
Hand strap
Leather carrying case
Lithium battery pack
Lanyard
AC adapter (For trickle charger)
NiCd battery pack. 700 mAh
NiCd battery pack. 850 mAh
AC adapter (For charger)
Shoulder strap
Trickle charger
Waterproof speaker-microphone
|
|
