Sailor 76D (By S.P. Radio A/S)

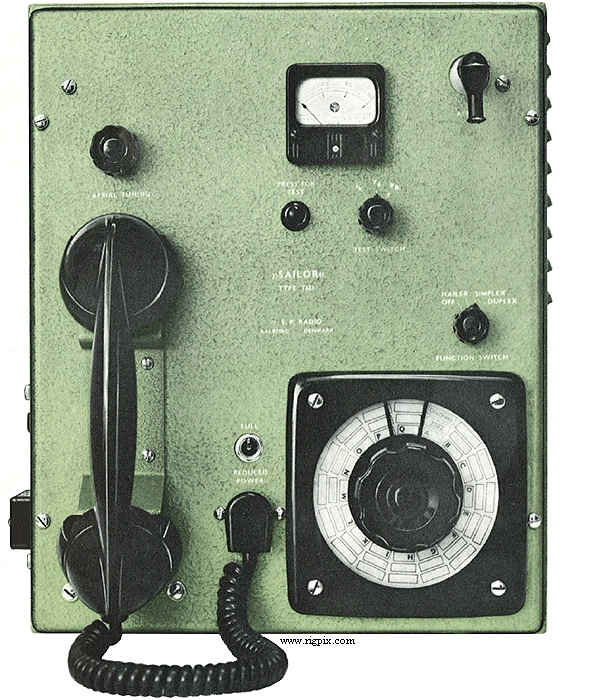

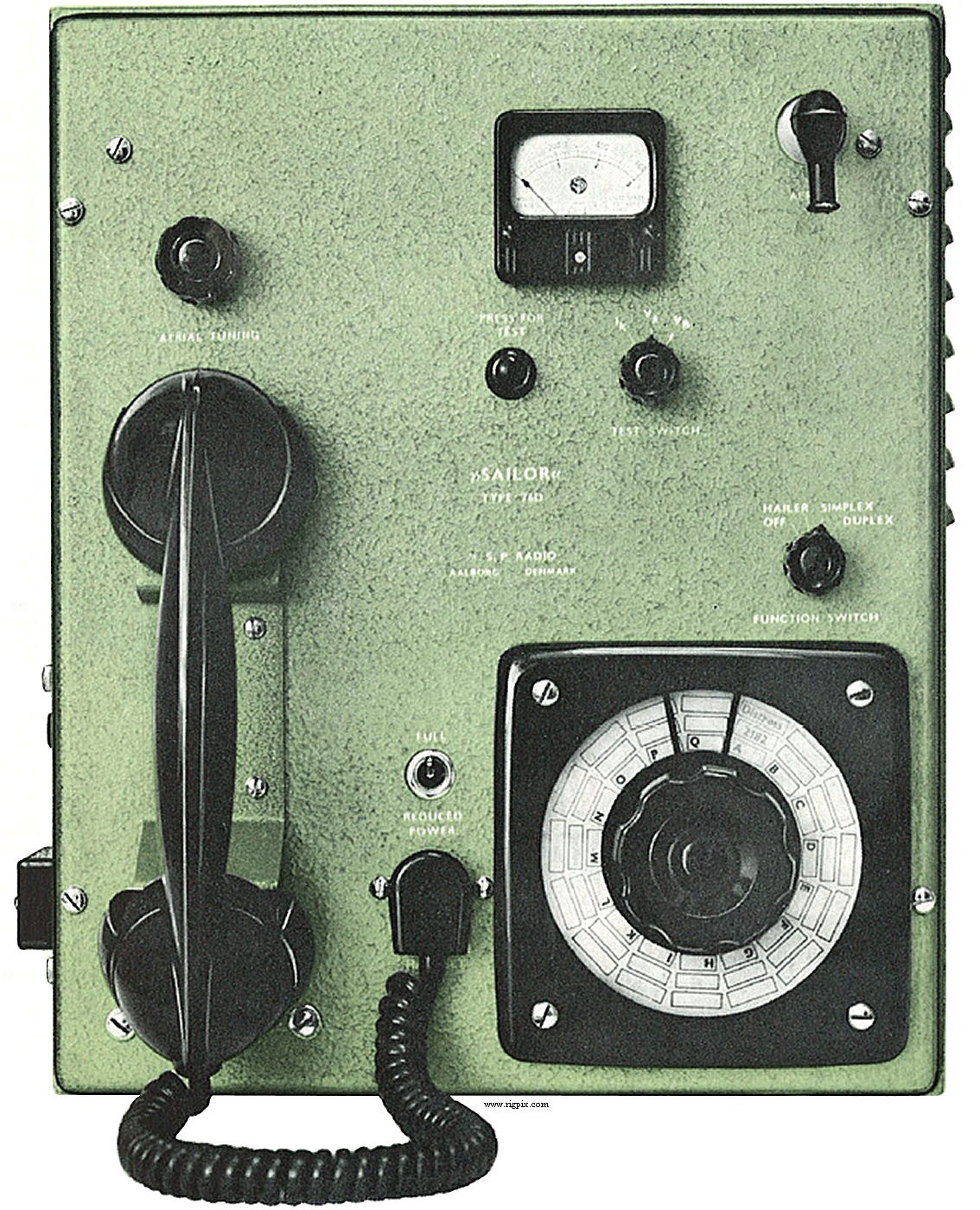

A picture of Sailor 76D (By S.P. Radio A/S)

SPECIFICATIONS

GENERAL
Type:Marine HF transmitter
Frequency range: 1.6-4.2 MHz
Tuning steps:Channelized
Frequency stability:0.005%
Mode:AM
Channels / memory management: 16 regular
One XTAL per channel
Duplex shift / offset:Yes
Power supply:12 / 24 VDC
Current drain / power consumption:Max ? A
Antenna impedance / connector:? ohm / ?
Dimensions (W*H*D):320*380*250 mm (12.6*15*9.84")
Weight:18 Kg (39.7 lb)
Other features:Hailer.




TRANSMITTER SECTION
RF output power: High: 35 W ( Carrier)
Low: 10 W (Carrier)
Modulation system:Anode-grid modulation
Max FM deviation (Factory set):No FM
Spurious emissions:Better than -50 dB
Microphone impedance / connector:? ohm / ?-pin
Microphone input level:




MISCELLANEOUS
Manufactured:Denmark, 196x-196x (Discontinued)
Additional info:
Related documents: User manual (7.7 MB)
RF final: 6883B
Modifications and fixes:
Reviews:
Options / Accessories:
- -
