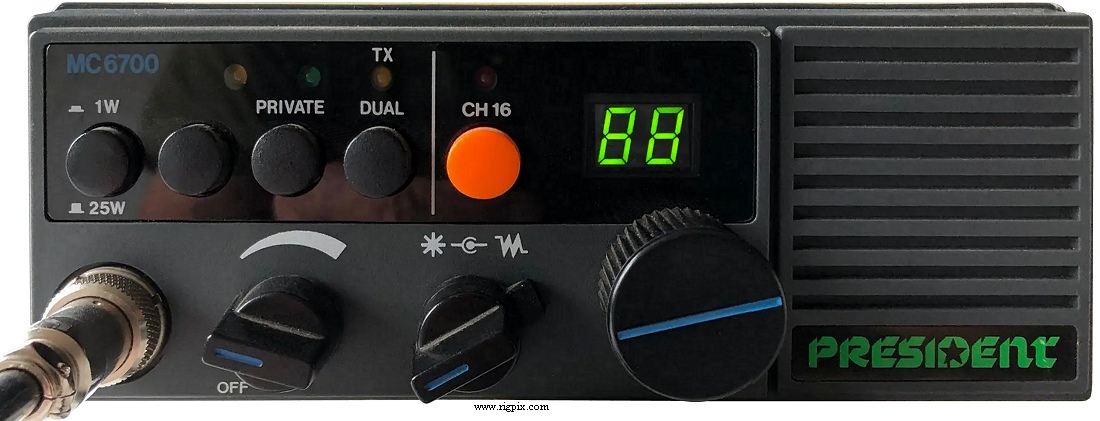

| GENERAL |
| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 155.000-159.225 MHz
RX: 155.000-163.825 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±1.5 KHz @ -15 to +55°C (5 to 131°F) |
| Mode: | FM |
| Channels / memory management: |
55 international
3 fishing boat channels (Scandinavia)
2 pleasure boat channels (Scandinavia)
10 private (Optional)
|

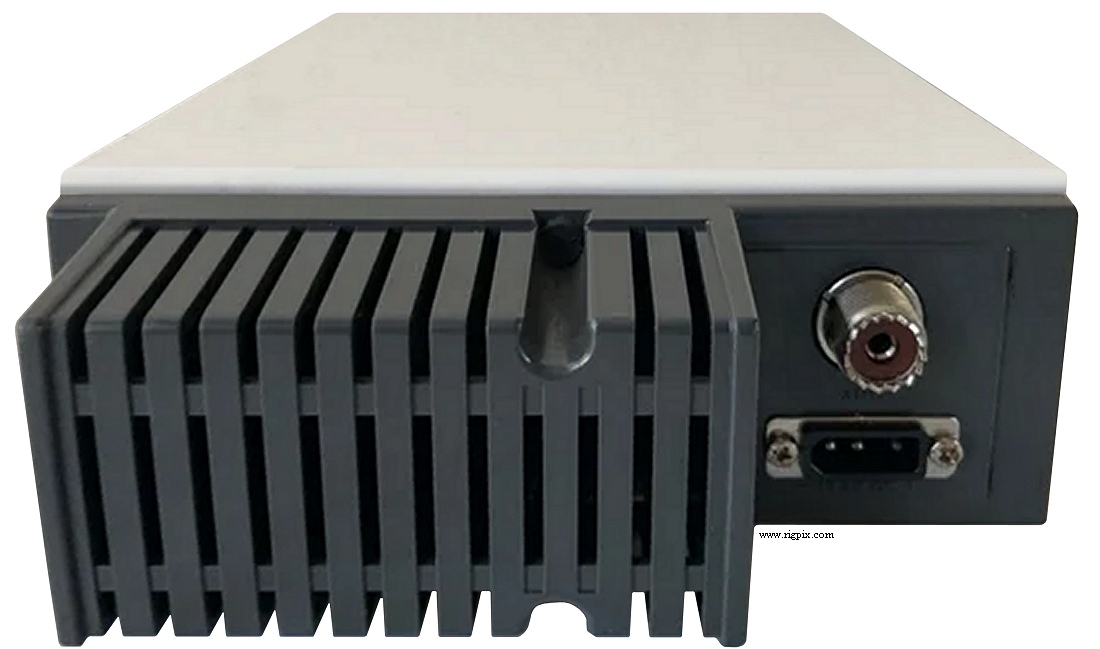

| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.2 VDC ±15% (Male 3-pin jack) |
| Current drain / power consumption: | RX: Max 1.5 A
TX: Max 6 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 188*68*265 mm (7.4*2.68*10.43") |
| Weight: | 2.3 Kg (5.07 lb) |
| Other features: |
Channel 16 button. Dual watch. Dimmer. Selcall option.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.4 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.6 uV (20 dB S/N) |
| Squelch sensitivity: | 0.6 uV (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 3.5 W at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max AM modulation (Factory set): | No AM |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | ? ohm / 8-pin (Male GX16 locking ring jack) |
| Microphone input level: | |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | 1984-198x (Discontinued) |
| Additional info: | |
| Related documents: |
User manual (1.4 MB)
Schematic diagram (1.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
