| GENERAL |

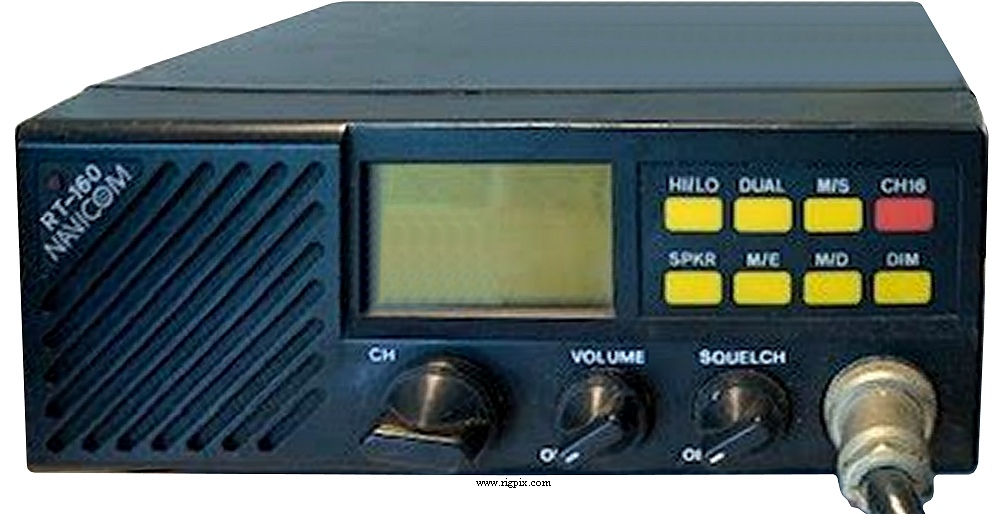

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.050-162.025 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 0.001% (No temperature reference) |
| Mode: | FM |
| Channels / memory management: |
US and international channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 12 VDC (Male 3-pin jack) |
| Current drain / power consumption: | RX: 150 mA
TX: Max 5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 168*64*172 mm (6.6*2.5*6.77") |
| Weight: | ? Kg (? lb) |
| Other features: | Channel 16 button. Dual watch. Scanning. Dimmer. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.3 uV (No SINAD reference) |
| Squelch sensitivity: | Less than 0.25 uV (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | 70 dB |
| AF output power / speaker: | 2 W at 10% distortion / 8 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | ? ohm / 7-pin (Male locking ring jack) |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Hong Kong, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
|
