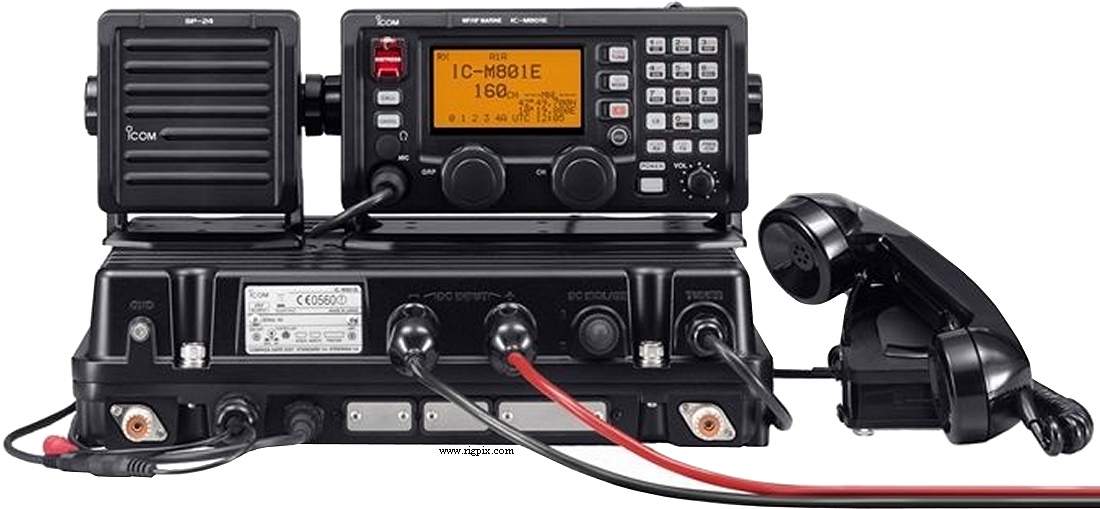

| GENERAL |
| Type: | Marine HF transceiver |
| Frequency range: |
TX: 1.6-3 / 4-5 / 6-7 / 8-9 / 12-14 / 16-20 / 22-23 / 25-27.5 MHz
RX: 0.5-30 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±10 Hz @ -15 to +55°C (5 to 131°F), after 5 minues warmup |
| Mode: | TX: SSB / FSK / AFSK
RX: AM / SSB / CW / FSK / AFSK |
| Channels / memory management: |
160 user programmable
249 ITU SSB duplex
124 ITU SSB simplex
662 ITU FSK duplex
10 semi/auto
|
| Duplex shift / offset: | According to bandplan
Programmable |
| Power supply: |
12 V version: 10.8-15.6 VDC
24 V version: 21.6-31.2 VDC
|
| Current drain / power consumption: |
RX:
12 V version: Less than 6 A
24 V version: Less than 3 A
TX:
12 V version: Max 60 A
24 V version: Max 30 A
|
| Antenna impedance / connector: | Transceiver: 50 ohm / SO-239
DSC receiver: 50 ohm / SO-239 |
| Dimensions (W*H*D): | Main unit: 367*95*260 mm (14.45*3.74*10.23")
Controller: 220*110*84 mm (8.66*4.33*3.31") |
| Weight: | Main unit: 8.5 Kg (18.74 lb)
Controller: 570 g (1.26 lb) |
| Other features: | DSC. RS-232C. Printer jack. GPS option (NMEA0183). |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: |
AM (20 dB SINAD)
0.5-1.6 MHz: 44 dBuV (160 uV)
1.6-1.8 MHz: 30 dBuV (31.5 uV)
1.8-4 MHz: 24 dBuV 15.9 uV)
SSB/CW (20 dB SINAD)
0.5-1.6 MHz: 30 dBuV (31.5 uV)
1.6-1.8 MHz: 13 dBuV 4.47 uV)
1.8-30 MHz: 8 dBuV (2.51 uV)
FSK/AFSK (20 dB SINAD)
1.6-1.8 MHz: 13 dBuV 4.47 uV)
1.8-30 MHz: 8 dBuV (2.51 uV)
DSC receiver: 0 dBuV (1 uV), All channels
|
| Squelch sensitivity: | |
| Selectivity: | |
| Image rejection: | 70 dB |
| AF output power / speaker: | 4 W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm), 4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
1.6-4 MHz: Max 85 W (PEP)
4-27.5 MHz: Max 125 W (PEP)
|
| Modulation system: | |
| Max FM deviation (Factory set): | No FM |
| Spurious emissions: | Better than -43 dB |
| Microphone impedance / connector: | 2.4 Kohm / 8-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2005-20xx (Discontinued) |
| Additional info: | |
| Related documents: | User manual (2.9 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
AT-141
HM-135
HS-98
MB-75
MB-106
OPC-1465
OPC-1466
RC-25E
SP-24E
|
Automatic antenna tuner
Hand microphone
Handset
Flush mount kit
One-touch mounting bracket
Separation cable. 5 m (16.4 ft)
Separation cable. 10 m (32.8 ft)
Remote controller (Same as supplied)
External speaker
|
|
