| GENERAL |

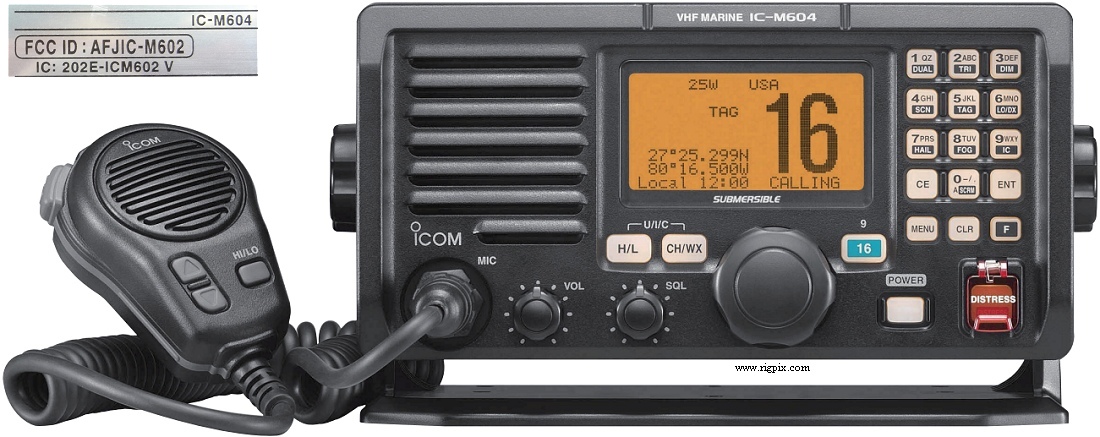

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.050-163.275 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±5 ppm @ -20 to +60°C (+4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
59 US, 63 Canadian and 59 international channels
10 NOAA weather channels
1 call
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.8 VDC ±15% |
| Current drain / power consumption: | RX: Max 1.5 A
TX: Max 5.5 A |
| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 220*110*109 mm (8.66*4.33*4.29") |
| Weight: | 1.4 Kg (3.09 lb) |
| Other features: |
Channel 16 button. Class D DSC. Dual/triwatch. Scanning.
Weather alert. AquaQuake water draining. Dimmer. Intercom.
Hailer. Foghorn. Voice scrambler option. AIS transponder option.
GPS option (NMEA).
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 30.5 MHz (Com) - 21.7 MHz (AIS channel 70 RX)
2nd IF: 450 KHz
|
| Sensitivity: | 0.22 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.3 uV (Threshold) |
| Selectivity: | 80 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 5 W at 10% distortion / 4 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dBc |
| Microphone impedance / connector: |
Front jack
2 Kohm / 8-pin (Standard mike only!)
Rear jacks
2 Kohm / 8-pin (HM-157 or HM-162 only!)
|
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2006-2010 (Discontinued) |
| Additional info: |
FCC ID: AFJIC-M602.
|
