| GENERAL |

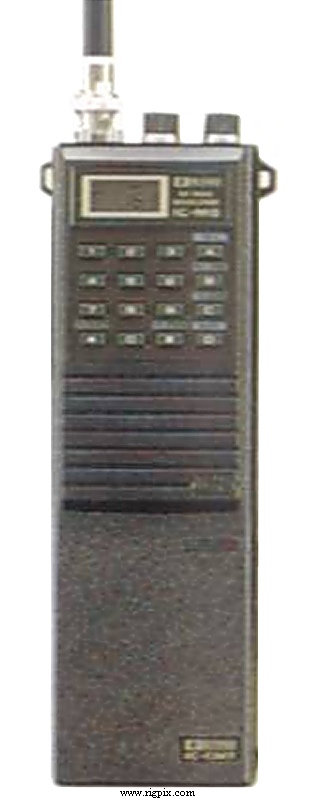

| Type: | Marine VHF transceiver |
| Frequency range: |
TX: 156.025-157.425 MHz
RX: 156.025-157.425 / 160.625-163.275 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | 0.0005% @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
All US and international channels
10 weather channels
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.2 VDC (With IC-CM7 battery pack)
or 6-15 VDC external |
| Current drain / power consumption: | RX: 35-140 mA
TX: Max 1.45 A |
| Antenna impedance / connector: | 50 ohm / BNC |
| Dimensions (W*H*D): | 65*118*35 mm (2.56*4.65*1.38"), without battery |
| Weight: | 590 g (1.3 lb), with IC-CM7 and antenna |
| Other features: | |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 16.9 MHz
2nd IF: 455 KHz
|
| Sensitivity: | 0.25 uV (12 dB SINAD) |
| Selectivity: | 65 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 500 mW at 10% distortion / 8 ohm |
| External speaker connector: | |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 2.5-5 W (Depending on voltage / battery pack)
Low: 1 W
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -60 dB |
| Microphone impedance / connector: | ? ohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 198x-198x (Discontinued) |
| Additional info: | |
| Related documents: | User manual (3.1 MB) |
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HS-10
HS-10SA
HS-10SB
IC-CM1
IC-CM2
IC-CM3
IC-CM4
IC-CM5
IC-CM7
IC-CM8
IC-CM9
IC-CM12
IC-CM16E
IC-CM16U
IC-CM35
IC-CM60
|
Headset
VOX unit
PTT switch box
DC cable
NiCd battery pack. 7.2 V, 400 mAh
NiCd battery pack. 8.4 V, 250 mAh
Battery case (Six R6 / AA alkaline or rechargeable batteries)
NiCd battery pack. 10.8 V, 400 mAh
NiCd battery pack. 13.2 V, 450 mAh
NiCd battery pack. 8.4 V, 800 mAh
Speaker-microphone
Battery case (Ten R6 / AA alkaline or rechargeable batteries)
Wall charger (Europe)
Wall charger (USA)
Desk charger
Desk multi charger
|
|
