| GENERAL |

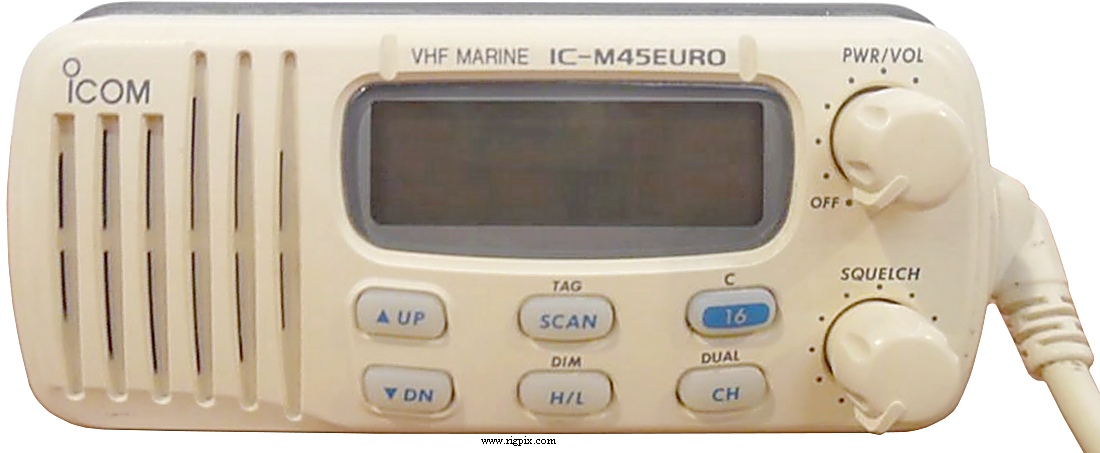

| Type: | Marine VHF transceiver |
| Frequency range: |
Europe
TX: 155.500-157.425 MHz
RX: 155.500-162.025 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: | ±10 ppm @ -20 to +60°C (-4 to +140°F) |
| Mode: | FM |
| Channels / memory management: |
All international channels + L1 and L2
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 13.8 VDC ±10% |
| Current drain / power consumption: | RX: Max 1.2 A
TX: Max 6 A |

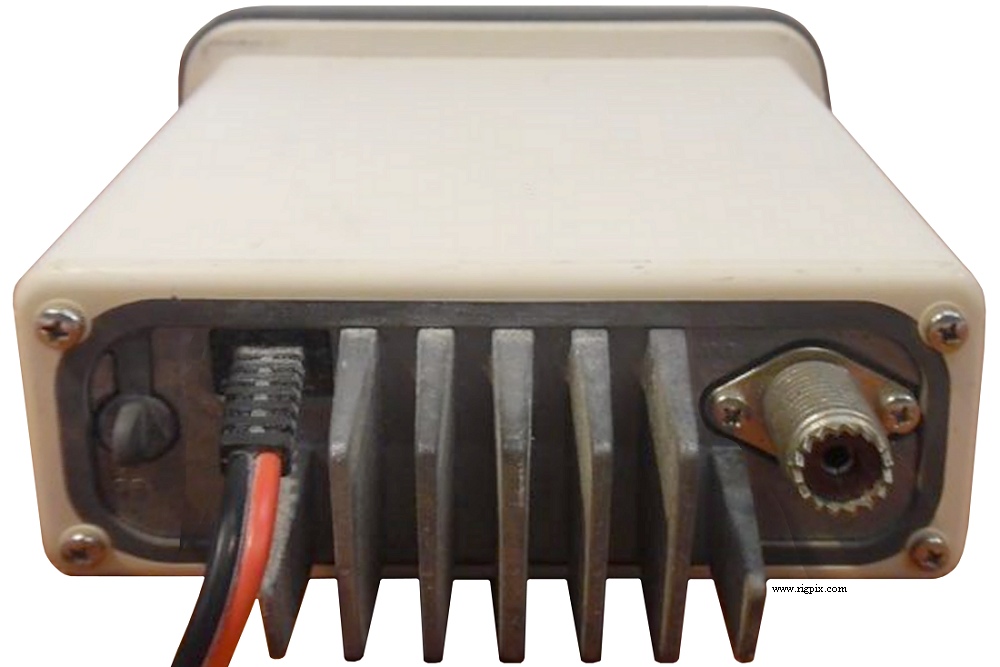

| Antenna impedance / connector: | 50 ohm / SO-239 |
| Dimensions (W*H*D): | 152*67*144 mm (6*2.64*5.67") |
| Weight: | 900 g (2 lb) |
| Other features: | Channel 16 button. Scanning. Dual/triwatch. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: 21.7 MHz
2nd IF: 450 KHz
|
| Sensitivity: | 0.22 uV (12 dB SINAD) |
| Squelch sensitivity: | Less than 0.2 uV (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 2 W at 10% distortion / 4 ohm |
| External speaker connector: | TS "Minijack" (3.5 mm) |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 25 W
Low: 1 W
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Better than -70 dB |
| Microphone impedance / connector: | 600 ohm / Fixed spiral cord |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 1999-200x (Discontinued) |
| Additional info: |
Was available in black or white.
|
| Related documents: |
User manual (1 MB, in Swedish)
Service manual (1.1 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
HM-124B
HM-124W
MB-69
OPC-891
SP-5
SP-10
|
Smart microphone (Black)
Smart microphone (White)
Flush mount
DC power cable
Large external speaker
Compact external speaker
|
|
