| GENERAL |

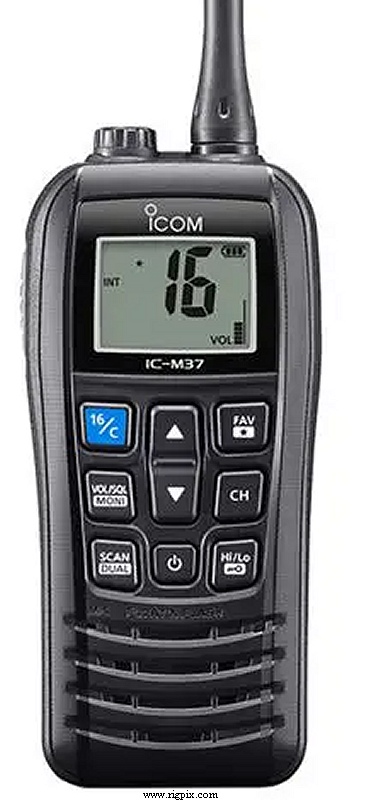

| Type: | Marine VHF transceiver |
| Frequency range: |
Europe
TX: 156.000-161.450 MHz
RX: 156.000-163.425 MHz
Australia
TX: 156.025-157.425 MHz
RX: 156.300-162.000 MHz
|
| Tuning steps: | Channelized |
| Frequency stability: |
Europe
±1.5 KHz @ -15 to +55°C (5 to +131°F)
Australia
±10 ppm @ -10 to +55°C (14 to +131°F)
|
| Mode: | FM |
| Channels / memory management: |
All US, Canadian and international channels
1 call
10 NOAA WX channels (Australian version only)
|
| Duplex shift / offset: | Automatic according to bandplan |
| Power supply: | 3.7 VDC nominal |
| Current drain / power consumption: | RX: Max 400 mA
TX: Max 2.75 A (Europe) - Max 2.6 A (Australia) |
| Antenna impedance / connector: | 50 ohm / ? |
| Dimensions (W*H*D): | 60*140*39 mm (2.4*5.5*1.5") |
| Weight: | 293 g (10.3 oz), with BP-296, antenna and belt clip |
| Other features: |
Channel 16 button. Dual/tri-watch. "Float'n flash" function.
Scanning. Weather alert.
|
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne
1st IF: ? MHz
2nd IF: ? KHz
|
| Sensitivity: | 0.63 uV (20 dB SINAD) |
| Squelch sensitivity: | 0.56 uV (Threshold) |
| Selectivity: | 70 dB (Adjacent channel) |
| Image rejection: | |
| AF output power / speaker: | 700 mW at 10% distortion / 8 ohm (Internal speaker) |
| External speaker connector: | 4 ohm |
|
|
|
|
| TRANSMITTER SECTION |
| RF output power: |
High: 6 W (Europe) - 5 W (Australia)
Low: 1 W
|
| Modulation system: | Variable reactance frequency modulation |
| Max FM deviation (Factory set): | ±5 KHz |
| Spurious emissions: | Less than 0.25 uW |
| Microphone impedance / connector: | 2 Kohm / ?-pin |
| Microphone input level: | ? mV |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: | Japan, 2019-20xx |
| Additional info: | |
| Related documents: |
User manual (3.7 MB)
|
| Modifications and fixes: | |
| Reviews: | |
| Options / Accessories: |
BC-217
BC-235
BC-238
BP-296
BP-297
FA-SC59V
HM-213
MB-133
OPC-2416
|
AC adapter
Desktop charger
Multi charger
Li-Ion battery pack. 3.6 V, 2350 mAh
Battery case (Three LR03 / AAA alkaline batteries)
Flexible antenna
Speaker-microphone
Belt clip
DC power cable
|
|
